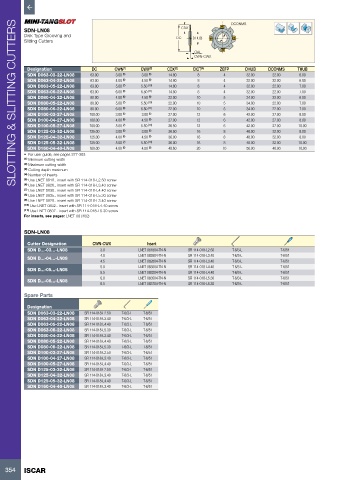

Page 356 - ISCAR(MILLINGCATALOG 38_2021)

SLOTTING & SLITTING CUTTERS
DCONMS
CDX
SDN-LN08
Disk Type Grooving and DC DHUB
Slitting Cutters
OAL
CWN-CWX
Designation DC CWN (1) CWX (2) CDX (3) CICT (4) ZEFP DHUB DCONMS THUB
SDN D063-03-22-LN08 63.00 3.00 (5) 3.00 14.80 8 4 32.00 22.00 6.00
(5)
SDN D063-04-22-LN08 63.00 4.00 (6) 4.50 (9) 14.80 8 4 32.00 22.00 6.00
SDN D063-05-22-LN08 63.00 5.00 (7) 5.50 (10) 14.80 8 4 32.00 22.00 7.00
SDN D063-06-22-LN08 63.00 6.00 (8) 6.50 (11) 14.80 8 4 32.00 22.00 7.00
SDN D080-04-22-LN08 80.00 4.00 4.50 22.00 10 5 34.00 22.00 6.00
(6)
(9)
(7)
(10)
SDN D080-05-22-LN08 80.00 5.00 5.50 22.00 10 5 34.00 22.00 7.00
(8)
SDN D080-06-22-LN08 80.00 6.00 6.50 22.00 10 5 34.00 22.00 7.00
(11)
(5)
SDN D100-03-27-LN08 100.00 3.00 3.00 27.00 12 6 42.00 27.00 8.00
(5)
(9)
SDN D100-04-27-LN08 100.00 4.00 4.50 27.00 12 6 42.00 27.00 8.00
(6)
SDN D100-05-27-LN08 100.00 5.00 5.50 26.50 12 6 42.00 27.00 10.00
(7)
(10)
(5)
SDN D125-03-32-LN08 125.00 3.00 3.00 36.50 16 8 48.00 32.00 8.00
(5)
SDN D125-04-32-LN08 125.00 4.00 4.50 36.00 16 8 48.00 32.00 8.00
(6)
(9)
SDN D125-05-32-LN08 125.00 5.00 5.50 36.00 16 8 48.00 32.00 10.00
(7)
(10)
SDN D160-04-40-LN08 160.00 4.00 4.50 48.60 20 10 56.00 40.00 10.00
(9)
(6)
• For user guide, see pages 377-383
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Number of inserts
(5) Use LNET 0818.. insert with SR 114-018-L2.50 screw
(6) Use LNET 0826.. insert with SR 114-018-L3.40 screw
(7) Use LNET 0830.. insert with SR 114-018-L4.40 screw
(8) Use LNET 0835.. insert with SR 114-018-L5.30 screw
(9) Use LNET 0828.. insert with SR 114-018-L3.40 screw
(10) Use LNET 0832.. insert with SR 114-018-L4.40 screw
(11) Use LNET 0837.. insert with SR 114-018-L5.30 screw
For inserts, see pages: LNET 08 (492)
SDN-LN08
Cutter Designation CWN-CWX Insert
SDN D...-03...-LN08 3.0 LNET 081804-TN-N SR 114-018-L2.50 T-6/3-L T-6/51
4.0 LNET 082604-TN-N SR 114-018-L3.40 T-6/3-L T-6/51
SDN D...-04...-LN08
4.5 LNET 082804-TN-N SR 114-018-L3.40 T-6/3-L T-6/51
5.0 LNET 083004-TN-N SR 114-018-L4.40 T-6/3-L T-6/51
SDN D...-05...-LN08
5.5 LNET 083204-TN-N SR 114-018-L4.40 T-6/3-L T-6/51
6.0 LNET 083504-TN-N SR 114-018-L5.30 T-6/3-L T-6/51
SDN D...-06...-LN08
6.5 LNET 083704-TN-N SR 114-018-L5.30 T-6/3-L T-6/51

Spare Parts
Designation
SDN D063-03-22-LN08 SR 114-018-L2.50 T-6/3-L T-6/51
SDN D063-04-22-LN08 SR 114-018-L3.40 T-6/3-L T-6/51
SDN D063-05-22-LN08 SR 114-018-L4.40 T-6/3-L T-6/51
SDN D063-06-22-LN08 SR 114-018-L5.30 T-6/3-L T-6/51
SDN D080-04-22-LN08 SR 114-018-L3.40 T-6/3-L T-6/51
SDN D080-05-22-LN08 SR 114-018-L4.40 T-6/3-L T-6/51
SDN D080-06-22-LN08 SR 114-018-L5.30 T-6/3-L T-6/51
SDN D100-03-27-LN08 SR 114-018-L2.50 T-6/3-L T-6/51
SDN D100-04-27-LN08 SR 114-018-L3.40 T-6/3-L T-6/51
SDN D100-05-27-LN08 SR 114-018-L4.40 T-6/3-L T-6/51
SDN D125-03-32-LN08 SR 114-018-L2.50 T-6/3-L T-6/51
SDN D125-04-32-LN08 SR 114-018-L3.40 T-6/3-L T-6/51
SDN D125-05-32-LN08 SR 114-018-L4.40 T-6/3-L T-6/51
SDN D160-04-40-LN08 SR 114-018-L3.40 T-6/3-L T-6/51
