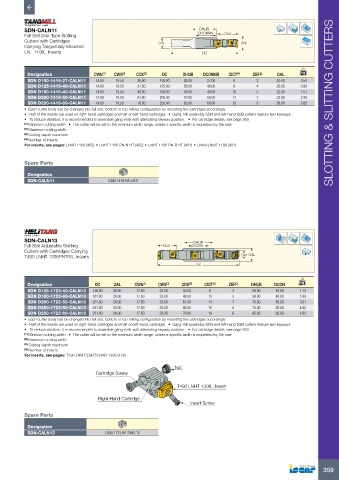

Page 361 - ISCAR(MILLINGCATALOG 38_2021)
P. 361

SDN-CALN11                                                   DHUB
          Full Slot Disk Type Slotting                                 DCONMS   CDX
          Cutters with Cartridges                        OAL                          CW
          Carrying Tangentially Mounted
          LN.. 1106.. Inserts                                           DC



           Designation            CWN (1)  CWX (2)  CDX (3)  DC  DHUB   DCONMS   CICT (4)  ZEFP   OAL      kg
           SDN D100-1419-27-CALN11  14.00  19.50  26.80  100.00   42.00   27.00    6       3      20.00    0.58
           SDN D125-1419-40-CALN11  14.00  19.50  31.50  125.00   56.00   40.00    8       4      20.00    0.90
           SDN D160-1419-40-CALN11  14.00  19.50  48.00  160.00   56.00   40.00    10      5      22.00    1.51
           SDN D200-1419-50-CALN11  14.00  19.50  61.00  200.00   70.00   50.00    14      7      22.00    2.38
           SDN D250-1419-60-CALN11  14.00  19.50  78.00  250.00   85.00   60.00    16      8      26.00    3.88       SLOTTING & SLITTING CUTTERS
          •  Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly
          •   Half of the inserts are used on right-hand cartridges and half on left-hand cartridges   •  Gang-mill assembly SDN and left-hand SSB cutters feature two keyways
          •   To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position.   •  For cartridge details, see page 363
          (1)  Minimum cutting width   •  The cutter will be set to the minimum width range, unless a specific width is requested by the user
          (2)  Maximum cutting width
          (3)  Cutting depth maximum
          (4)  Number of inserts
          For inserts, see pages: LNAR 1106 (482) • LNHT 1106 PN-N HT (482) • LNHT 1106 PN-R HT (481) • LNKX/LNMT 1106 (481)


          Spare Parts

           Designation
           SDN-CALN11                  CA90 1419-R/L-LN11












          SDN-CALN13                                                 DHUB
          Full Slot Adjustable Slotting                   CDX        DCON
          Cutters with Cartridges Carrying
          T490 LNHT 1306PNTR/L Inserts                                                CW OAL
                                                                      DC


           Designation            DC     OAL    CWN (1)  CWX (2)  CDX (3)  CICT (4)  ZEFP  DHUB  DCON     kg
           SDN D125-1723-40-CALN13  126.00  26.00  17.50  23.00  32.00    8        4      56.00   40.00   1.13
           SDN D160-1723-40-CALN13  161.00  26.00  17.50  23.00  49.50    10       5      56.00   40.00   1.90
           SDN D200-1723-50-CALN13  201.00  26.00  17.50  23.00  61.00    14       7      70.00   50.00   3.01
           SDN D250-1723-50-CALN13  251.00  26.00  17.50  23.00  86.00    16       8      70.00   50.00   4.82
           SDN D250-1723-60-CALN13  251.00  26.00  17.50  23.00  78.00    16       8      85.00   60.00   4.83
          •  Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly
          •   Half of the inserts are used on right-hand cartridges and half on left-hand cartridges   •  Gang-mill assembly SDN and left-hand SSB cutters feature two keyways
          •   To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position.   •  For cartridge details, see page 363
          (1)  Minimum cutting width   •  The cutter will be set to the minimum width range, unless a specific width is requested by the user
          (2)  Maximum cutting width
          (3)  Cutting depth maximum
          (4)  Number of inserts
          For inserts, see pages: T490 LNMT/LNHT/LNAR 1306 (478)

                                                              Nut
                                   Cartridge Screw

                                                               T490 LNHT 1306...Insert

                                   Right Hand Cartridge
                                                                    Insert Screw

          Spare Parts

           Designation
           SDN-CALN13                 CA90 1723-R/L-T490-13
