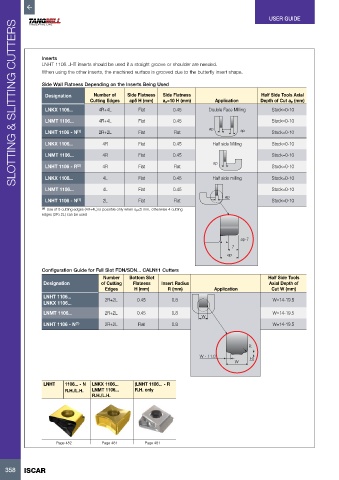

USER GUIDE
      SLOTTING & SLITTING CUTTERS






                Inserts
                LNHT 1106...HT inserts should be used if a straight groove or shoulder are needed.
                When using the other inserts, the machined surface is grooved due to the butterfly insert shape.

                Side Wall Flatness Depending on the Inserts Being Used
                 Designation      Number of   Side Flatness   Side Flatness                  Half Side Tools Axial
                                 Cutting Edges  ap5 H (mm)  ap=10 H (mm)     Application    Depth of Cut ap (mm)
                 LNKX 1106...       4R+4L         Flat        0.45        Double Face MIlling   Stock=0-10

                 LNMT 1106...       4R+4L         Flat        0.45                              Stock=0-10
                                                                          ap
                 LNHT 1106 - N (1)  2R+2L         Flat        Flat                   ap         Stock=0-10
                 LNKX 1106...        4R           Flat        0.45          Half side Milling   Stock=0-10
                 LNMT 1106...        4R           Flat        0.45                              Stock=0-10
                                                                            ap
                 LNHT 1106 - R (2)   4R           Flat        Flat                              Stock=0-10
                 LNKX 1106...        4L           Flat        0.45          Half side milling   Stock=0-10

                 LNMT 1106...        4L           Flat        0.45                              Stock=0-10
                                                                                ap
                 LNHT 1106 - N (1)   2L           Flat        Flat                              Stock=0-10
                (1)   Use of 8 cutting edges (4R+4L) is possible only when ap≤5 mm, otherwise 4 cutting
                edges (2R+2L) can be used




                                                                                      ap-7
                                                                                   7
                                                                                 ap

                Configuration Guide for Full Slot FDN/SDN... CALN11 Cutters
                                     Number   Bottom Slot                                      Half Side Tools
                Designation          of Cutting   Flatness   Insert Radius                      Axial Depth of
                                      Edges     H (mm)      R (mm)          Application         Cut W (mm)
                LNHT 1106...          2R+2L      0.45        0.8                                 W=14-19.5
                LNKX 1106...
                LNMT 1106...          2R+2L      0.45        0.8                                 W=14-19.5
                                                                        W
                LNHT 1106 - N (1)     2R+2L       Flat       0.8                                 W=14-19.5



                                                                                        R

                                                                       WÊ-Ê11.0          H
                                                                                   W



                LNHT    1106... - N  LNKX 1106...  (LNHT 1106... - R
                        R.H./L.H.  LNMT 1106...  R.H. only
                                 R.H./L.H.









                     Page 482        Page 481       Page 481
