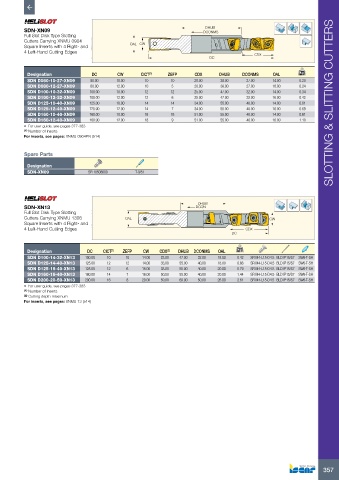

P. 359

SDN-XN09                                                     DHUB
          Full Slot Disk Type Slotting                                  DCONMS
          Cutters Carrying XNMU 0904           OAL  CW
          Square Inserts with 4 Right- and
            4 Left-Hand Cutting Edges                                                     CDX
                                                                           DC


           Designation           DC       CW       CICT (1)  ZEFP    CDX      DHUB    DCONMS     OAL      kg
           SDN D080-10-27-XN09   80.00    10.00     10       10      20.00    38.00     27.00    14.00    0.20
           SDN D080-12-27-XN09   80.00    12.00     10       5       20.00    38.00     27.00    16.00    0.24
             SDN D100-10-32-XN09  100.00  10.00     12       12      25.00    47.00     32.00    14.00    0.34
           SDN D100-12-32-XN09  100.00    12.00     12       6       25.00    47.00     32.00    16.00    0.42
           SDN D125-10-40-XN09  125.00    10.00     14       14      34.00    55.00     40.00    14.00    0.61        SLOTTING & SLITTING CUTTERS
           SDN D125-12-40-XN09  125.00    12.00     14       7       34.00    55.00     40.00    16.00    0.69
           SDN D160-10-40-XN09  160.00    10.00     18       18      51.00    55.00     40.00    14.00    0.61
           SDN D160-12-40-XN09  160.00    12.00     18       9       51.00    55.00     40.00    16.00    1.10
          •  For user guide, see pages 377-383
          (1)  Number of inserts
          For inserts, see pages: XNMU 0904PN (514)


          Spare Parts

           Designation
           SDN-XN09             SR 10508600      T-9/51





                                                                       DHUB
          SDN-XN13                                                    DCON
          Full Slot Disk Type Slotting
          Cutters Carrying XNMU 1306         OAL                                                CW
          Square Inserts with 4 Right- and
          4 Left-Hand Cutting Edges                                                    CDX
                                                                                  DC

           Designation          DC   CICT (1)  ZEFP  CW  CDX (2)  DHUB  DCONMS  OAL  kg
           SDN D100-14-32-XN13  100.00  10   10    14.00  23.00  47.00  32.00  18.00  0.42  SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH
           SDN D125-14-40-XN13  125.00  12   12    14.00  33.00  55.00  40.00  18.00  0.66  SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH
           SDN D125-16-40-XN13  125.00  12   6     16.00  33.00  55.00  40.00  20.00  0.79  SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH
           SDN D160-16-40-XN13  160.00  14   7     16.00  50.50  55.00  40.00  20.00  1.44  SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH
           SDN D200-20-50-XN13  200.00  16   8     20.00  59.00  69.00  50.00  26.00  2.61  SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH
          •  For user guide, see pages 377-383
          (1)  Number of inserts
          (2)  Cutting depth maximum
          For inserts, see pages: XNMU 13 (514)
