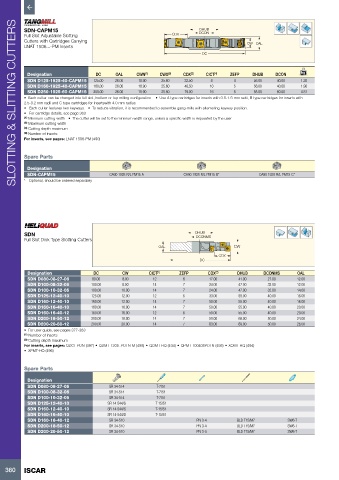

P. 362

SLOTTING & SLITTING CUTTERS

          SDN-CAPM15                                                   DHUB
          Full Slot Adjustable Slotting                      CDX       DCON
          Cutters with Cartridges Carrying                                              CW OAL
          LNAT 1506...-PM Inserts
                                                                        DC



           Designation             DC     OAL    CWN (1)  CWX (2)  CDX (3)  CICT (4)  ZEFP  DHUB  DCON     kg
           SDN D125-1925-40-CAPM15  125.00  26.00  18.90  25.60   32.50    8       4      56.00   40.00    1.30
           SDN D160-1925-40-CAPM15  160.00  26.00  18.90  25.60   48.50    10      5      56.00   40.00    1.90
           SDN D250-1925-60-CAPM15  250.00  26.00  18.90  25.60   79.00    16      8      85.00   60.00    4.81
          •  Each cutter can be changed into full slot, bottom or top milling configuration    •  Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with
          2.5-3.2 mm radii and C type cartridges for insertswith 4.0 mm radius
          •   Each cutter features two keyways.   •  To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position.
          •   For cartridge details, see page 363
          (1)  Minimum cutting width   •  The cutter will be set to the minimum width range, unless a specific width is requested by the user
          (2)  Maximum cutting width
          (3)  Cutting depth maximum
          (4)  Number of inserts
          For inserts, see pages: LNAT 1506-PM (490)

          Spare Parts
           Designation
           SDN-CAPM15                  CA90 1928-R/L-PM15-A       CA90 1928-R/L-PM15-B*     CA90 1928-R/L-PM15-C*
          *  Optional, should be ordered separately










          SDN                                                         DHUB
                                                                      DCONMS
          Full Slot Disk Type Slotting Cutters
                                                         OAL                       CW
                                                                              CDX
                                                                       DC
           Designation            DC        CW       CICT (1)   ZEFP      CDX (2)   DHUB      DCONMS     OAL
           SDN D080-08-27-06     80.00      8.00       12        6         17.00     41.00     27.00     12.00
           SDN D100-08-32-06     100.00     8.00       14        7         24.00     47.00     32.00     12.00
           SDN D100-10-32-06     100.00     10.00      14        7         24.00     47.00     32.00     14.00
           SDN D125-12-40-10     125.00     12.00      12        6         33.00     55.00     40.00     16.00
           SDN D160-12-40-10     160.00     12.00      14        7         50.00     55.00     40.00     16.00
           SDN D160-16-40-10     160.00     16.00      14        7         50.00     55.00     40.00     20.00
           SDN D160-16-40-12     160.00     16.00      12        6         50.00     55.00     40.00     20.00
           SDN D200-18-50-12     200.00     18.00      14        7         50.00     69.00     50.00     24.00
           SDN D200-20-50-12     200.00     20.00      14        7         63.00     69.00     50.00     26.00
          •  For user guide, see pages 377-383
          (1)  Number of inserts
          (2)  Cutting depth maximum
          For inserts, see pages: QDCT-PDN (497) • QDMT 1205..PDTN-M (498) • QOMT-HQ (494) • QPMT 100408PDTN (495) • XOMT-HQ (494)
          •  XPMT-HQ (496)


          Spare Parts

           Designation
           SDN D080-08-27-06           SR 34-514        T-7/51
           SDN D100-08-32-06           SR 34-514        T-7/51
           SDN D100-10-32-06           SR 34-514        T-7/51
           SDN D125-12-40-10           SR 14-544/S      T-15/51
           SDN D160-12-40-10           SR 14-544/S      T-15/51
           SDN D160-16-40-10           SR 14-544/S      T-15/51
           SDN D160-16-40-12           SR 34-510                      PN 3-4        BLD T15/M7        SW6-T
           SDN D200-18-50-12           SR 34-510                      PN 3-4        BLD T15/M7        SW6-T
           SDN D200-20-50-12           SR 34-510                      PN 3-4        BLD T15/M7        SW6-T
