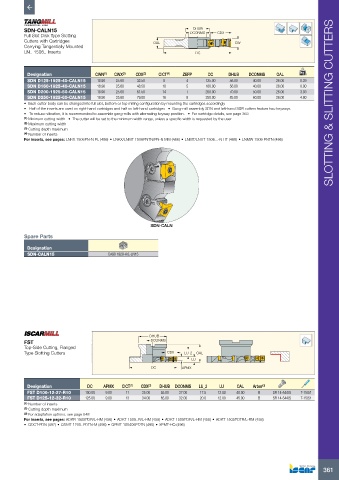

P. 363

DHUB
          SDN-CALN15                                                DCONMS
          Full Slot Disk Type Slotting                                       CDX
            Cutters with Cartridges                    OAL                         CW
          Carrying Tangentially Mounted
          LN.. 1506.. Inserts                                         DC


           Designation             CWN (1)  CWX (2)  CDX (3)  CICT (4)  ZEFP  DC  DHUB  DCONMS    OAL      kg
           SDN D125-1925-40-CALN15  18.90  25.60  32.50   8        4     125.00   56.00   40.00   26.00   0.39
           SDN D160-1925-40-CALN15  18.90  25.60  48.50   10       5     160.00   56.00   40.00   26.00   0.00
           SDN D200-1925-50-CALN15  18.90  25.60  61.50   14       7     200.00   70.00   50.00   26.00   3.03
           SDN D250-1925-60-CALN15  18.90  25.60  79.00   16       8     250.00   85.00   60.00   26.00   4.80
          •  Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly    SLOTTING & SLITTING CUTTERS
          •   Half of the inserts are used on right-hand cartridges and half on left-hand cartridges   •  Gang-mill assembly SDN and left-hand SSB cutters feature two keyways.
          •   To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position.   •  For cartridge details, see page 363
          (1)  Minimum cutting width   •  The cutter will be set to the minimum width range, unless a specific width is requested by the user
          (2)  Maximum cutting width
          (3)  Cutting depth maximum
          (4)  Number of inserts
          For inserts, see pages: LNKX 1506PN-N PL (486) • LNKX/LNMT 1506PNTN/PN-N MM (486) • LNMT/LNHT 1506...-N HT (488) • LNMW 1506 PNTN (486)

















                                                      SDN-CALN

          Spare Parts

           Designation
           SDN-CALN15                  CA90 1928-R/L-LN15
















                                                      DHUB

          FST                                         DCONMS
          Top-Side Cutting, Flanged
          Type Slotting Cutters                             CDX   LU_2  OAL
                                                                    LU
                                                      DC         APMX


           Designation          DC   APMX   CICT (1)  CDX (2)  DHUB  DCONMS  LU_2  LU  OAL  Arbor (3)
           FST D100-12-27-R10  100.00  9.00  11    25.00  55.00  27.00  17.5  12.00  40.00  B    SR 14-544/S  T-15/51
           FST D125-12-32-R10  125.00  9.00  13    34.00  65.00  32.00  20.0  12.00  45.00  B    SR 14-544/S  T-15/51
          (1)  Number of inserts
          (2)  Cutting depth maximum
          (3)  For adaptation options, see page 548
          For inserts, see pages: ADKR 1505PDR/L-HM (456) • ADKT 1505..R/L-HM (459) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR/L-RM (458)
          •  QDCT-PDN (497) • QDMT 1205..PDTN-M (498) • QPMT 100408PDTN (495) • XPMT-HQ (496)
