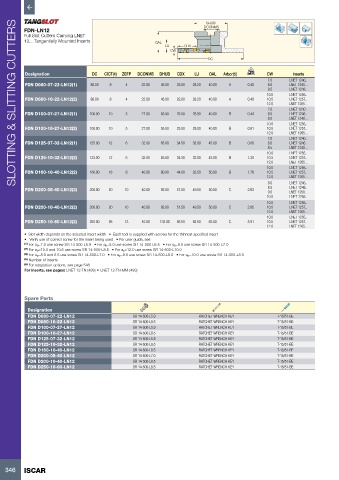

Page 348 - ISCAR(MILLINGCATALOG 38_2021)

SLOTTING & SLITTING CUTTERS
DHUB
DCONMS

FDN-LN12
Full Slot Cutters Carrying LNET
12... Tangentially Mounted Inserts OAL
LU CDX
CW
DC

Designation DC CICT(4) ZEFP DCONMS DHUB CDX LU OAL Arbor(5) kg CW Inserts
7.0 LNET 1240..
FDN D080-07-22-LN12(1) 80.00 8 4 22.00 45.00 22.00 28.20 40.00 A 0.40 8.0 LNET 1245...
8.5 LNET 1248..
10.0 LNET 1255..
FDN D080-10-22-LN12(2) 80.00 8 4 22.00 45.00 22.00 28.20 40.00 A 0.40 10.5 LNET 1257..
12.0 LNET 1265...
7.0 LNET 1240..
FDN D100-07-27-LN12(1) 100.00 10 5 27.00 55.00 25.00 28.50 40.00 B 0.44 8.0 LNET 1245..
8.5 LNET 1248...
10.0 LNET 1255..
FDN D100-10-27-LN12(2) 100.00 10 5 27.00 55.00 25.00 28.50 40.00 B 0.61 10.5 LNET 1257..
12.0 LNET 1265...
7.0 LNET 1240..
FDN D125-07-32-LN12(1) 125.00 12 6 32.00 65.00 34.50 32.00 45.00 B 0.60 8.0 LNET 1245..
8.5 LNET 1248...
10.0 LNET 1255..
FDN D125-10-32-LN12(2) 125.00 12 6 32.00 65.00 34.50 32.00 45.00 B 1.30 10.5 LNET 1257..
12.0 LNET 1265...
10.0 LNET 1255..
FDN D160-10-40-LN12(2) 160.00 16 8 40.00 80.00 44.00 33.50 50.00 B 1.76 10.5 LNET 1257..
12.0 LNET 1265...
8.0 LNET 1245..
8.5 LNET 1248..
FDN D200-08-40-LN12(3) 200.00 20 10 40.00 92.00 51.50 49.50 50.00 C 2.63
9.0 LNET 1250...
10.0 LNET 1255..
10.0 LNET 1255..
FDN D200-10-40-LN12(2) 200.00 20 10 40.00 92.00 51.50 49.50 50.00 C 2.95 10.5 LNET 1257..
12.0 LNET 1265...
10.0 LNET 1255..
FDN D250-10-60-LN12(2) 250.00 26 13 40.00 132.00 56.50 62.50 63.00 C 5.91 10.5 LNET 1257..
12.0 LNET 1265...
• Slot width depends on the selected insert width • Each tool is supplied with screws for the thinnest specified insert
• Verify use of correct screw for the insert being used • For user guide, see
(1) For ap=7.0 use screw SR 14-500-L5.9 • For ap=8.0 use screw SR 14-500-L6.5 • For ap=8.5 use screw SR 14-500-L7.0
(2) For ap=10.0 and 10.5 use screw SR 14-500-L8.5 • For ap=12.0 use screw SR 14-500-L10.0
(3) For ap=8.0 and 8.5 use screw SR 14-500-L7.0 • For ap=9.0 use screw SR 14-500-L8.0 • For ap=10.0 use screw SR 14-500-L8.5
(5) Number of inserts
(6) For adaptation options, see page 548
For inserts, see pages: LNET 12-TN (493) • LNET 12-TN-MM (493)

Spare Parts
Designation
FDN D080-07-22-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE
FDN D080-10-22-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE
FDN D100-07-27-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE
FDN D100-10-27-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE
FDN D125-07-32-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE
FDN D125-10-32-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE
FDN D160-10-40-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE
FDN D200-08-40-LN12 SR 14-500-L7.0 RATCHET WRENCH KEY T-15/51-BE
FDN D200-10-40-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE
FDN D250-10-60-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE

346 ISCAR
