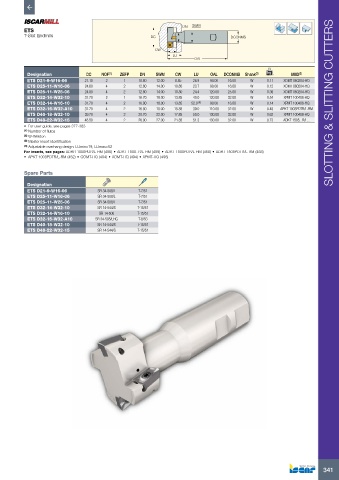

Page 343 - ISCAR(MILLINGCATALOG 38_2021)

DN SWM
ETS
T-Slot Endmills DC DCONMS
CW
LU
OAL

Designation DC NOF (1) ZEFP DN SWM CW LU OAL DCONMS Shank (2) kg MIID (3)
ETS D21-9-W16-06 21.10 2 1 10.80 12.00 8.85 26.9 90.00 16.00 W 0.11 XOMT 060204-HQ
ETS D25-11-W16-06 24.80 4 2 12.80 14.00 10.80 23.7 90.00 16.00 W 0.12 XOMT 060204-HQ
ETS D25-11-W25-06 24.80 4 2 12.80 14.00 10.80 24.4 120.00 25.00 W 0.36 XOMT 060204-HQ
ETS D32-14-W32-10 31.70 2 1 16.70 18.00 13.85 40.0 120.00 32.00 W 0.54 XPMT 100408-HQ
ETS D32-14-W16-10 31.70 4 2 16.00 18.00 13.85 52.0 (4) 90.00 16.00 W 0.14 XPMT 100408-HQ SLOTTING & SLITTING CUTTERS
ETS D32-16-W32-A10 31.70 4 2 16.80 18.00 15.85 39.0 110.00 32.00 W 0.48 APKT 1003PDTR/L-RM
ETS D40-18-W32-10 39.70 4 2 20.70 22.00 17.85 50.0 130.00 32.00 W 0.62 XPMT 100408-HQ
ETS D48-22-W32-15 48.50 4 2 26.00 27.00 21.85 51.3 130.00 32.00 W 0.73 ADKT 1505...R/L...
• For user guide, see pages 377-383
(1) Number of flutes
(2) W-Weldon
(3) Master insert identification
(4) Adjustable overhang design: LUmin=19, LUmax=52
For inserts, see pages: ADKR 1505PDR/L-HM (456) • ADKT 1505..R/L-HM (459) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR/L-RM (458)
• APKT 1003PDTR/L-RM (452) • QOMT-HQ (494) • XOMT-HQ (494) • XPMT-HQ (496)

Spare Parts

Designation
ETS D21-9-W16-06 SR 34-508/L T-7/51
ETS D25-11-W16-06 SR 34-508/L T-7/51
ETS D25-11-W25-06 SR 34-508/L T-7/51
ETS D32-14-W32-10 SR 14-544/S T-15/51
ETS D32-14-W16-10 SR 14-506 T-15/51
ETS D32-16-W32-A10 SR 34-505/LHG T-8/53
ETS D40-18-W32-10 SR 14-544/S T-15/51
ETS D48-22-W32-15 SR 14-544/S T-15/51

341
