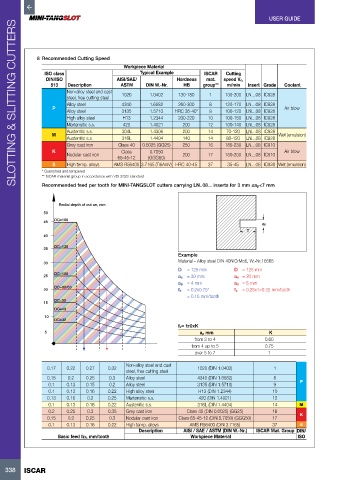

P. 340

USER GUIDE
      SLOTTING & SLITTING CUTTERS






              8  Recommended Cutting Speed
                                            Workpiece Material
                 ISO class                        Typical Example        ISCAR   Cutting
                 DIN/ISO                  AISI/SAE/            Hardness   mat.   speed Vc,
                   513   Description       ASTM     DIN W.-Nr.   HB     group**  m/min  Insert Grade  Coolant
                         Non-alloy steel and cast
                         steel, free cutting steel  1020  1.0402  130-180  1    130-200  LN….08 IC928
                         Alloy steel        4340      1.6582    260-300    8    120-170  LN….08 IC928
                   P                                                                                 Air blow
                         Alloy steel        3135      1.5710  HRC 35-40*   9    100-120  LN….08 IC928
                         High alloy steel   H13       1.2344    200-220   10    100-150  LN….08 IC928
                         Martensitic s.s.   420       1.4021     200      12    100-140  LN….08 IC928
                         Austenitic s.s.    304L      1.4306     200      14    70-120  LN….08 IC928
                   M                                                                               Wet (emulsion)
                         Austenitic s.s.    316L      1.4404     140      14    80-120  LN….08 IC928
                         Grey cast iron    Class 40  0.6025 (GG25)   250  16    180-230  LN….08 IC910
                   K                        Class     0.7050                                         Air blow
                         Nodular cast iron                       200      17    150-200  LN….08 IC910
                                          65-45-12   (GGG50)
                   S     High temp. alloys  AMS R56400 3.7165 (Ti6Al4V) HRC 40-45  37  35-45  LN….08 IC928 Wet (emulsion)
                * Quenched and tempered
                ** ISCAR material group in accordance with VDI 3323 standard
                Recommended feed per tooth for MINI-TANGSLOT cutters carrying LN..08... inserts for 3 mm ≤ap<7 mm


                      Redial depth of cut ae, mm
                50
                    DC=160
                45
                                                                                             ap
                                                                                        T
                40
                35  DC=125
                                                                Example
                                                                Material - Alloy steel DIN 40NiCrMo6, W.-Nr.16565
                30
                                                                D  = 125 mm        D = 125 mm
                    DC=100
                25                                              ae = 30 mm         ae = 20 mm
                                                                ap = 4 mm          ap = 6 mm
                    DC=80/63
                20                                              fz  = 0.2x0.75*    fz  = 0.25x1=0.25 mm/tooth
                                                                   = 0.15 mm/tooth
                    DC=50
                15
                    DC=40
                 10
                    DC=32
                                                                fz= fz0xK
                 5                                                     ap mm                    K
                                                                     from 3 to 4              0.60
                                                                    from 4 up to 5            0.75
                                                                     over 5 to 7               1
                                             Non-alloy steel and cast
                  0.17  0.22   0.27    0.32                           1020 (DIN 1.0402)          1
                                             steel, free cutting steel
                  0.15   0.2   0.25    0.3   Alloy steel              4340 (DIN 1.6582)          8
                  0.1   0.13   0.15    0.2   Alloy steel              3135 (DIN 1.5710)          9        P
                  0.1   0.13   0.16    0.22  High alloy steel          H13 (DIN 1.2344)          10
                  0.13  0.16    0.2    0.25  Martensitic s.s.          420 (DIN 1.4021)          12
                  0.1   0.13   0.16    0.22  Austenitic s.s.          316L (DIN 1.4404)          14       M
                  0.2   0.25    0.3    0.35  Grey cast iron        Class 40 (DIN 0.6025) (GG25)  16
                  0.15   0.2   0.25    0.3   Nodular cast iron   Class 65-45-12 (DIN 0.7050) (GGG50)  17  K
                  0.1   0.13   0.16    0.22  High temp. alloys      AMS R56400 (DIN 3.7165)      37       S
                                                  Description    AISI / SAE / ASTM (DIN W.-Nr.)  ISCAR Mat. Group DIN/
                     Basic feed fz0, mm/tooth                       Workpiece Material                    ISO
