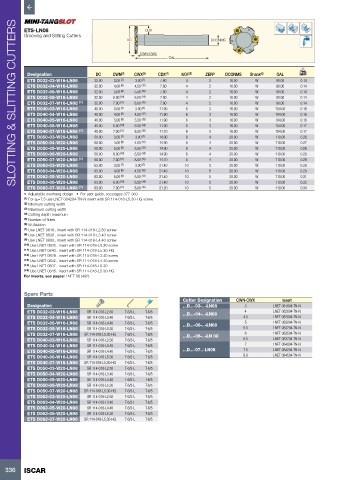

Page 338 - ISCAR(MILLINGCATALOG 38_2021)

SLOTTING & SLITTING CUTTERS

ETS-LN08 CDX
Grooving and Slitting Cutters
DC DCONMS
CWN-CWX
OAL

Designation DC CWN (2) CWX (3) CDX (4) NOF (5) ZEFP DCONMS Shank (6) OAL kg
ETS D032-03-W16-LN08 32.00 3.00 (7) 3.00 7.90 4 2 16.00 W 90.00 0.14
(7)
ETS D032-04-W16-LN08 32.00 4.00 (8) 4.50 (12) 7.90 4 2 16.00 W 90.00 0.14
ETS D032-05-W16-LN08 32.00 5.00 (9) 5.50 (13) 7.90 4 2 16.00 W 90.00 0.14
ETS D032-06-W16-LN08 32.00 6.00 (10) 6.50 (14) 7.90 4 2 16.00 W 90.00 0.14
ETS D032-07-W16-LN08 (1) 32.00 7.00 (11) 8.00 (15) 7.90 4 2 16.00 W 90.00 0.14
(7)
ETS D040-03-W16-LN08 40.00 3.00 3.00 11.90 6 3 16.00 W 104.00 0.16
(7)
(8)
ETS D040-04-W16-LN08 40.00 4.00 4.50 11.90 6 3 16.00 W 104.00 0.16
(12)
ETS D040-05-W16-LN08 40.00 5.00 5.50 11.90 6 3 16.00 W 104.00 0.16
(13)
(9)
ETS D040-06-W16-LN08 40.00 6.00 6.50 11.90 6 3 16.00 W 104.00 0.17
(10)
(14)
(15)
ETS D040-07-W16-LN08 (1) 40.00 7.00 8.00 11.70 6 3 16.00 W 104.00 0.17
(11)
ETS D050-03-W20-LN08 50.00 3.00 3.00 14.90 8 4 20.00 W 110.00 0.26
(7)
(7)
ETS D050-04-W20-LN08 50.00 4.00 4.50 14.90 8 4 20.00 W 110.00 0.27
(12)
(8)
ETS D050-05-W20-LN08 50.00 5.00 5.50 14.90 8 4 20.00 W 110.00 0.28
(13)
(9)
ETS D050-06-W20-LN08 50.00 6.00 6.50 14.90 8 4 20.00 W 110.00 0.28
(10)
(14)
ETS D050-07-W20-LN08 (1) 50.00 7.00 8.00 14.70 8 4 20.00 W 110.00 0.29
(11)
(15)
(7)
ETS D063-03-W20-LN08 63.00 3.00 3.00 21.40 10 5 20.00 W 110.00 0.28
(7)
(12)
ETS D063-04-W20-LN08 63.00 4.00 4.50 21.40 10 5 20.00 W 110.00 0.29
(8)
ETS D063-05-W20-LN08 63.00 5.00 5.50 21.40 10 5 20.00 W 110.00 0.31
(9)
(13)
(10)
(14)
ETS D063-06-W20-LN08 63.00 6.00 6.50 21.40 10 5 20.00 W 110.00 0.32
ETS D063-07-W20-LN08 (1) 63.00 7.00 8.00 21.20 10 5 20.00 W 110.00 0.34
(15)
(11)
• Adjustable overhang design • For user guide, see pages 377-383
(1) For ap=7.5 use LNET 084204-TN-N insert with SR 114-018-L5.30-HG screw
(2) Minimum cutting width
(3) Maximum cutting width
(4) Cutting depth maximum
(5) Number of flutes
(6) W-Weldon
(7) Use LNET 0818.. insert with SR 114-018-L2.50 screw
(8) Use LNET 0826.. insert with SR 114-018-L3.40 screw
(9) Use LNET 0830.. insert with SR 114-018-L4.40 screw
(10) Use LNET 0835.. insert with SR 114-018-L5.30 screw
(11) Use LNET 0840.. insert with SR 114-018-L5.30-HG
(12) Use LNET 0828.. insert with SR 114-018-L3.40 screw
(13) Use LNET 0832.. insert with SR 114-018-L4.40 screw
(14) Use LNET 0837.. insert with SR 114-018-L5.30
(15) Use LNET 0845.. insert with SR 114-018-L5.30-HG
For inserts, see pages: LNET 08 (492)

Spare Parts
Cutter Designation CWN-CWX Insert
Designation ...D...-03-..-LN08 3 LNET 081804-TN-N
ETS D032-03-W16-LN08 SR 114-018-L2.50 T-6/3-L T-6/5 ...D...-04-..-LN08 4 LNET 082604-TN-N
ETS D032-04-W16-LN08 SR 114-018-L3.40 T-6/3-L T-6/5 4.5 LNET 082804-TN-N
ETS D032-05-W16-LN08 SR 114-018-L4.40 T-6/3-L T-6/5 ...D...-05-..-LN08 5 LNET 083004-TN-N
ETS D032-06-W16-LN08 SR 114-018-L5.30 T-6/3-L T-6/5 5.5 LNET 083204-TN-N
ETS D032-07-W16-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5 ...D...-06-..-LN 08 6 LNET 083504-TN-N
ETS D040-03-W16-LN08 SR 114-018-L2.50 T-6/3-L T-6/5 6.5 LNET 083704-TN-N
ETS D040-04-W16-LN08 SR 114-018-L3.40 T-6/3-L T-6/5 7 LNET 084004-TN-N
ETS D040-05-W16-LN08 SR 114-018-L4.40 T-6/3-L T-6/5 ...D...-07..-LN08 7.5 LNET 084204-TN-N
ETS D040-06-W16-LN08 SR 114-018-L5.30 T-6/3-L T-6/5 8.0 LNET 084504-TN-N
ETS D040-07-W16-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5
ETS D050-03-W20-LN08 SR 114-018-L2.50 T-6/3-L T-6/5
ETS D050-04-W20-LN08 SR 114-018-L3.40 T-6/3-L T-6/5
ETS D050-05-W20-LN08 SR 114-018-L4.40 T-6/3-L T-6/5
ETS D050-06-W20-LN08 SR 114-018-L5.30 T-6/3-L T-6/5
ETS D050-07-W20-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5
ETS D063-03-W20-LN08 SR 114-018-L2.50 T-6/3-L T-6/5
ETS D063-04-W20-LN08 SR 114-018-L3.40 T-6/3-L T-6/5
ETS D063-05-W20-LN08 SR 114-018-L4.40 T-6/3-L T-6/5
ETS D063-06-W20-LN08 SR 114-018-L5.30 T-6/3-L T-6/5
ETS D063-07-W20-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5
