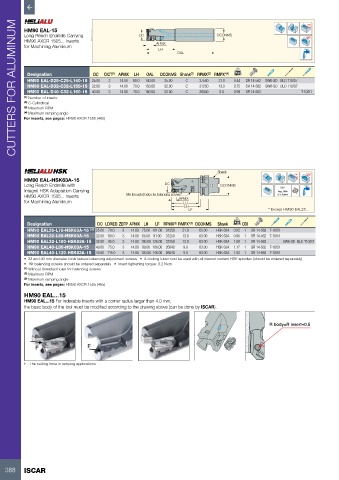

CUTTERS FOR ALUMINUM
Rd°
HM90 EAL-15
Long Reach Endmills Carrying DC DCONMS
HM90 AXCR 1505... Inserts APMX
for Machining Aluminum
LH
OAL
Designation DC CICT (1) APMX LH OAL DCONMS Shank (2) RPMX (3) RMPX° (4) kg
HM90 EAL-D25-C25-L140-15 25.00 2 14.00 60.0 140.00 25.00 C 37500 21.0 0.44 SR 14-562 SW6-SD BLD T10/S7
HM90 EAL-D32-C32-L150-15 32.00 3 14.00 70.0 150.00 32.00 C 31250 13.0 0.75 SR 14-562 SW6-SD BLD T10/S7
HM90 EAL-D40-C32-L160-15 40.00 3 14.00 70.0 160.00 32.00 C 26040 9.0 0.99 SR 14-562 T-10/51
(1) Number of inserts
(2) C-Cylindrical
(3) Maximum RPM
(4) Maximum ramping angle
For inserts, see pages: HM90 AXCR 1505 (465)
Shank
Rd°
HM90 EAL-HSK63A-15
Long Reach Endmills with DC DCONMS
G2.5
Integral HSK Adaptation Carrying Max. RPM
HM90 AXCR 1505... Inserts M6 threaded holes for balancing screws* APMX U<1.0 gmm
for Machining Aluminum LU
LH
LF * Except HM90 EAL25...
Designation DC LDRED ZEFP APMX LH LF RPMX RMPX° (3) DCONMS Shank kg CDI
(2)
HM90 EAL25-L75-HSK63A-15 (1) 25.00 70.0 2 14.00 75.00 101.00 31250 21.0 63.00 HSK 63A 0.82 1 SR 14-562 T-10/51
HM90 EAL32-L65-HSK63A-15 32.00 60.0 3 14.00 65.00 91.00 31250 13.0 63.00 HSK 63A 0.90 1 SR 14-562 T-10/51
HM90 EAL32-L100-HSK63A-15 32.00 95.0 3 14.00 100.00 126.00 31250 13.0 63.00 HSK 63A 1.08 1 SR 14-562 SW6-SD BLD T10/S7
HM90 EAL40-L80-HSK63A-15 40.00 75.0 3 14.00 80.00 106.00 26040 9.0 63.00 HSK 63A 1.17 1 SR 14-562 T-10/51
HM90 EAL40-L120-HSK63A-15 40.00 115.0 3 14.00 120.00 146.00 26040 9.0 63.00 HSK 63A 1.52 1 SR 14-562 T-10/51
• 32 and 40 mm diameter tools feature balancing adjustment screws • A cooling tube must be used with all internal coolant HSK spindles (should be ordered separately)
• Kit balancing screws should be ordered separately • Insert tightening torque: 3.2 Nxm
(1) Without threaded holes for balancing screws
(2) Maximum RPM
(3) Maximum ramping angle
For inserts, see pages: HM90 AXCR 1505 (465)
HM90 EAL...15
HM90 EAL...15 For indexable inserts with a corner radius larger than 4.0 mm,
the basic body of the tool must be modified according to the drawing above (can be done by ISCAR).
R body=R insert+0.5
F - The cutting force in ramping applications
