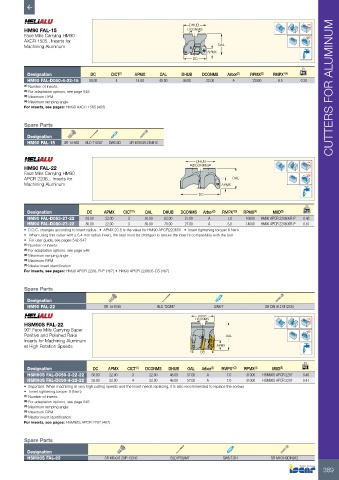

P. 391

DHUB                                     Rd°

          HM90 FAL-15                                              DCONMS
          Face Mills Carrying HM90
          AXCR 1505.. Inserts for
          Machining Aluminum                                                  OAL
                                                                          APMX
                                                                     DC


           Designation           DC     CICT (1)  APMX   OAL     DHUB   DCONMS   Arbor (2)  RPMX (3)  RMPX° (4)  kg
           HM90 FAL-D050-4-22-15  50.00   4      14.00   45.00   49.00   22.00     A      23000    6.5     0.30
          (1)  Number of inserts
          (2)  For adaptation options, see page 548                                                                    CUTTERS FOR ALUMINUM
          (3)  Maximum RPM
          (4)  Maximum ramping angle
          For inserts, see pages: HM90 AXCR 1505 (465)

          Spare Parts
           Designation
           HM90 FAL-15  SR 14-562  BLD T10/S7  SW6-SD  SR M10X25 DIN912


                                                                      DHUB
                                                                     DCONMS                                  Rd°
          HM90 FAL-22
          Face Mills Carrying HM90
          APCR 2206... Inserts for                                                 OAL
          Machining Aluminum                                                   APMX
                                                                       DC


           Designation          DC    APMX  CICT (1)  OAL  DHUB  DCONMS  Arbor (2)  RMPX° (3)  RPMX (4)  MIID (5)  kg
           HM90 FAL-D063-27-22  63.00  22.00  3     50.00  62.00  27.00   A      7.0   16000  HM90 APCR 220605R-P  0.48
           HM90 FAL-D080-27-22  80.00  22.00  3     50.00  70.00  27.00   A      5.0   14000  HM90 APCR 220605R-P  0.81
          •  D.O.C. changes according to insert radius   •  APMX 20.5 is the value for HM90 APCR220650   •  Insert tightening torque: 6 Nxm
          •   When using this cutter with a 6.4 mm radius insert, the seat must be changed to assure the insert's compatibility with the tool
          •   For user guide, see pages 542-547
          (1)  Number of inserts
          (2)  For adaptation options, see page 548
          (3)  Maximum ramping angle
          (4)  Maximum RPM
          (5)  Master insert identification
          For inserts, see pages: HM90 APCR 2206..R-P (467) • HM90 APCR 220605-CS (467)

          Spare Parts
           Designation
           HM90 FAL-22                SR 14-0180        BLD T20/M7          SW6-T             SR DIN 912 M12X25
                                                                      DHUB
                                                                      DCONMS                                 Rd°

          HSM90S FAL-22
          90° Face Mills Carrying Super
          Positive and Polished Rake                                            OAL
          Inserts for Machining Aluminum
          at High Rotation Speeds                                            APMX
                                                                       DC

           Designation            DC   APMX   CICT (1)  DCONMS  DHUB  OAL  Arbor (2)  RMPX° (3)  RPMX (4)  MIID (5)  kg
           HSM90S FAL-D050-3-22-22  50.00  22.00  3   22.00  48.00  57.00  A     7.0   31000  HSM90S APCR 2207  0.40
           HSM90S FAL-D050-4-22-22  50.00  22.00  4   22.00  48.00  57.00  A     7.0   31000  HSM90S APCR 2207  0.41
          •  Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screws
          •   Insert tightening torque: 9 (Nxm)
          (1)  Number of inserts
          (2)  For adaptation options, see page 548
          (3)  Maximum ramping angle
          (4)  Maximum RPM
          (5)  Master insert identification
          For inserts, see pages: HSM90S APCR 2207 (467)

          Spare Parts
           Designation
           HSM90S FAL-22              SR M5x0.8 20IP-13343   BLD IP20/M7       SW6-T-SH         SR M10X40DIN912
