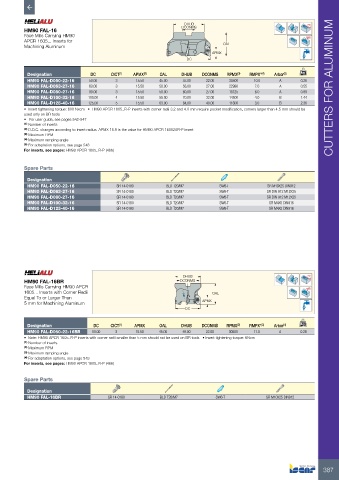

Page 389 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS Rd°
HM90 FAL-16
Face Mills Carrying HM90
APCR 1605... Inserts for OAL
Machining Aluminum
APMX
DC

Designation DC CICT (1) APMX (2) OAL DHUB DCONMS RPMX (3) RMPX° (4) Arbor (5) kg
HM90 FAL-D050-22-16 50.00 3 15.50 45.00 47.00 22.00 30500 10.0 A 0.26
HM90 FAL-D063-27-16 63.00 3 15.50 50.00 58.00 27.00 22990 7.0 A 0.55
HM90 FAL-D080-27-16 80.00 3 15.50 50.00 60.00 27.00 18125 6.0 A 0.89 CUTTERS FOR ALUMINUM
HM90 FAL-D100-32-16 100.00 4 15.50 55.00 70.00 32.00 14500 4.0 B 1.44
HM90 FAL-D125-40-16 125.00 5 15.50 63.00 84.00 40.00 11600 3.0 B 2.36
• Insert tightening torque: 600 Nxcm • HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be
used only on BR tools
• For user guide, see pages 542-547
(1) Number of inserts
(2) D.O.C. changes according to insert radius. APMX 15.5 is the value for HM90 APCR 160520R-P insert
(3) Maximum RPM
(4) Maximum ramping angle
(5) For adaptation options, see page 548
For inserts, see pages: HM90 APCR 1605..R-P (466)

Spare Parts

Designation
HM90 FAL-D050-22-16 SR 14-0180 BLD T20/M7 SW6-T SR M10X25 DIN912
HM90 FAL-D063-27-16 SR 14-0180 BLD T20/M7 SW6-T SR DIN 912 M12X25
HM90 FAL-D080-27-16 SR 14-0180 BLD T20/M7 SW6-T SR DIN 912 M12X25
HM90 FAL-D100-32-16 SR 14-0180 BLD T20/M7 SW6-T SR M4X5 DIN916
HM90 FAL-D125-40-16 SR 14-0180 BLD T20/M7 SW6-T SR M4X5 DIN916

DHUB Rd°

HM90 FAL-16BR DCONMS
Face Mills Carrying HM90 APCR
1605... Inserts with Corner Radii OAL
Equal To or Larger Than
5 mm for Machining Aluminum APMX
DC

Designation DC CICT (1) APMX OAL DHUB DCONMS RPMX (2) RMPX° (3) Arbor (4) kg
HM90 FAL-D050-22-16BR 50.00 3 15.50 45.00 49.00 22.00 30500 11.0 A 0.28
• Note: HM90 APCR 1605..R-P inserts with corner radii smaller than 5 mm should not be used on BR tools • Insert tightening torque: 6Nxm
(1) Number of inserts
(2) Maximum RPM
(3) Maximum ramping angle
(4) For adaptation options, see page 548
For inserts, see pages: HM90 APCR 1605..R-P (466)

Spare Parts

Designation
HM90 FAL-16BR SR 14-0180 BLD T20/M7 SW6-T SR M10X25 DIN912
