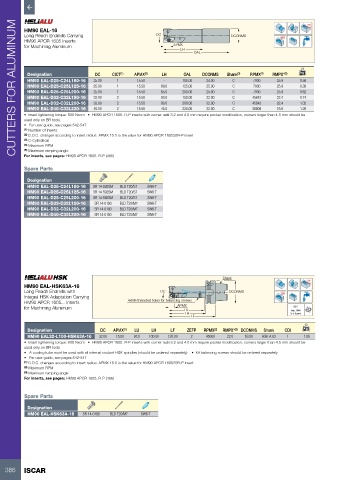

P. 388

CUTTERS FOR ALUMINUM
                                                                                                             Rd°

          HM90 EAL-16
          Long Reach Endmills Carrying                  DC                        DCONMS
          HM90 APCR 1605 Inserts
             for Machining Aluminum                           APMX
                                                                LH
                                                                     OAL


           Designation            DC    CICT (1)  APMX (2)  LH    OAL   DCONMS   Shank (3)  RPMX (4)  RMPX° (5)  kg
           HM90 EAL-D25-C24L180-16  25.00  1     15.50    -      180.00   24.00    C      7000    25.9    0.56
           HM90 EAL-D25-C25L125-16  25.00  1     15.50    69.0   125.00   25.00    C      7000    25.9    0.38
           HM90 EAL-D25-C25L200-16  25.00  1     15.50    65.0   200.00   25.00    C      7000    25.9    0.62
           HM90 EAL-D32-C32L150-16  32.00  2     15.50    90.0   150.00   32.00    C      45643   22.4    0.74
           HM90 EAL-D32-C32L200-16  32.00  2     15.50    80.0   200.00   32.00    C      45643   22.4    1.02
           HM90 EAL-D40-C32L220-16  40.00  2     15.50    45.0   220.00   32.00    C      36809   16.9    1.28
          •  Insert tightening torque: 600 Nxcm   •  HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be
          used only on BR tools.
          •   For user guide, see pages 542-547
          (1)  Number of inserts
          (2)  D.O.C. changes according to insert radius. APMX 15.5 is the value for HM90 APCR 160520R-P insert
          (3)  C-Cylindrical
          (4)  Maximum RPM
          (5)  Maximum ramping angle
          For inserts, see pages: HM90 APCR 1605..R-P (466)

          Spare Parts

           Designation
           HM90 EAL-D25-C24L180-16  SR 14-592SM  BLD T20/S7  SW6-T
           HM90 EAL-D25-C25L125-16  SR 14-592SM  BLD T20/S7  SW6-T
           HM90 EAL-D25-C25L200-16  SR 14-592SM  BLD T20/S7  SW6-T
           HM90 EAL-D32-C32L150-16  SR 14-0180  BLD T20/M7  SW6-T
           HM90 EAL-D32-C32L200-16  SR 14-0180  BLD T20/M7  SW6-T
           HM90 EAL-D40-C32L220-16  SR 14-0180  BLD T20/M7  SW6-T












                                                                               Shank
                                                                                                             Rd°

          HM90 EAL-HSK63A-16
          Long Reach Endmills with                       DC                      DCONMS
          Integral HSK Adaptation Carrying
          HM90 APCR 1605... Inserts           4xM6 threaded holes for balancing screws
          for Machining Aluminum                               APMX                                    Max. RPM
                                                                                                        G2.5
                                                                  LU
                                                                  LH                                   U<1.0 gmm
                                                                    LF
           Designation              DC   APMX (1)  LU  LH    LF    ZEFP  RPMX (2)  RMPX° (3)  DCONMS  Shank  CDI  kg
           HM90 EAL32-L100-HSK63A-16  32.00  15.50  97.0  100.00  126.00  2  45600  22.0  63.00  HSK A 63  1  1.06
          •  Insert tightening torque: 600 Nxcm   •  HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be
          used only on BR tools
          •   A cooling tube must be used with all internal coolant HSK spindles (should be ordered separately)    •  Kit balancing screws should be ordered separately
          •   For user guide, see pages 542-547
          (1)  D.O.C. changes according to insert radius. APMX 15.5 is the value for HM90 APCR 160520R-P insert
          (2)  Maximum RPM
          (3)  Maximum ramping angle
          For inserts, see pages: HM90 APCR 1605..R-P (466)


          Spare Parts

           Designation
           HM90 EAL-HSK63A-16  SR 14-0180  BLD T20/M7  SW6-T
