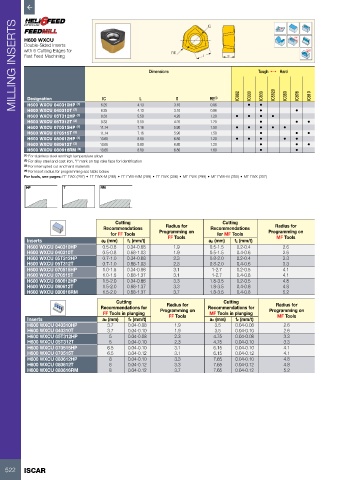

Page 524 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS H600 WXCU Dimensions RE L IC S Tough 1 Hard Rd°

Double-Sided Inserts
with 6 Cutting Edges for
Fast Feed Machining

Designation
IC
L
S
0.96
H600 WXCU 040310HP
•
H600 WXCU 040310T
0.96
3.10
6.25
4.13
(2)
•
•
8.33
4.20
5.50
1.20
(1)
H600 WXCU 05T312HP (1) 6.25 4.13 3.10 RE (4) • IC882 • IC330 • IC830 • IC5820 IC380 • IC808 IC810
H600 WXCU 05T312T (2) 8.33 5.50 4.20 1.20 • • •
H600 WXCU 070515HP (1) 11.14 7.16 5.90 1.50 • • • • •
H600 WXCU 070515T (2) 11.14 7.16 5.90 1.50 • • •
H600 WXCU 080612HP (1) 13.65 8.80 6.80 1.20 • • • • •
H600 WXCU 080612T (2) 13.65 8.80 6.80 1.20 • • •
H600 WXCU 080616RM (3) 13.65 8.80 6.80 1.60 • •
(1) For stainless steel and high temperature alloys
(2) For alloy steel and cast iron, "I" mark on top rake face for identification
(3) For interrupted cut and hard materials
(4) For insert radius for programming see table below
For tools, see pages: FF EWX (297) • FF EWX-M (298) • FF EWX-MM (299) • FF FWX (306) • MF EWX (299) • MF EWX-M (300) • MF FWX (307)
HP T RM
Cutting Cutting
Recommendations Radius for Recommendations Radius for
for FF Tools Programming on for MF Tools Programming on
Inserts ap (mm) fz (mm/t) FF Tools ap (mm) fz (mm/t) MF Tools
H600 WXCU 040310HP 0.5-0.8 0.34-0.68 1.9 0.5-1.5 0.2-0.4 2.6
H600 WXCU 040310T 0.5-0.8 0.68-1.03 1.9 0.5-1.5 0.4-0.6 2.6
H600 WXCU 05T312HP 0.7-1.0 0.34-0.68 2.3 0.8-2.0 0.2-0.4 3.3
H600 WXCU 05T312T 0.7-1.0 0.68-1.03 2.3 0.8-2.0 0.4-0.6 3.3
H600 WXCU 070515HP 1.0-1.5 0.34-0.86 3.1 1-2.7 0.2-0.5 4.1
H600 WXCU 070515T 1.0-1.5 0.68-1.37 3.1 1-2.7 0.4-0.8 4.1
H600 WXCU 080612HP 1.5-2.0 0.34-0.86 3.3 1.8-3.5 0.2-0.5 4.8
H600 WXCU 080612T 1.5-2.0 0.68-1.37 3.3 1.8-3.5 0.4-0.8 4.8
H600 WXCU 080616RM 1.5-2.0 0.68-1.37 3.7 1.8-3.5 0.4-0.8 5.2
Cutting Cutting
Radius for
Radius for
Recommendations for Programming on Recommendations for Programming on
FF Tools in plunging MF Tools in plunging
Inserts ae (mm) fz (mm/t) FF Tools ae (mm) fz (mm/t) MF Tools
H600 WXCU 040310HP 3.7 0.04-0.08 1.9 3.5 0.04-0.08 2.6
H600 WXCU 040310T 3.7 0.04-0.10 1.9 3.5 0.04-0.10 2.6
H600 WXCU 05T312HP 5 0.04-0.08 2.3 4.75 0.04-0.08 3.3
H600 WXCU 05T312T 5 0.04-0.10 2.3 4.75 0.04-0.10 3.3
H600 WXCU 070515HP 6.5 0.04-0.10 3.1 6.15 0.04-0.10 4.1
H600 WXCU 070515T 6.5 0.04-0.12 3.1 6.15 0.04-0.12 4.1
H600 WXCU 080612HP 8 0.04-0.10 3.3 7.65 0.04-0.10 4.8
H600 WXCU 080612T 8 0.04-0.12 3.3 7.65 0.04-0.12 4.8
H600 WXCU 080616RM 8 0.04-0.12 3.7 7.65 0.04-0.12 5.2
