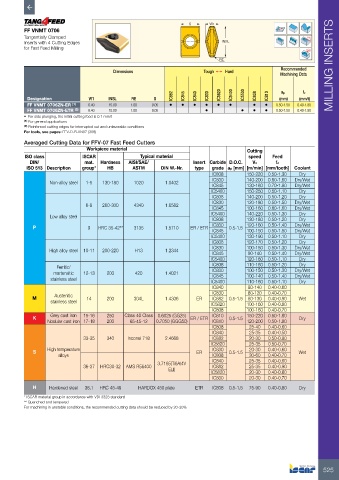

Page 527 - ISCAR(MILLINGCATALOG 38_2021)

S W1
FF VNMT 0706
Tangentially Clamped Rd°
Inserts with 4 Cutting Edges INSL
for Fast Feed Milling

RE
Dimensions Tough 1 Hard Recommended MILLING INSERTS
Machining Data

IC882 IC845 IC840 IC830 IC5820 IC5400 IC5500 IC808 IC810 ap fz
Designation W1 INSL RE S (mm) (mm/t)
FF VNMT 0706ZN-ER (1) 6.40 15.00 1.00 9.05 • • • • • • • • 0.50-1.50 0.40-1.80
FF VNMT 0706ZN-ETR (2) 6.40 15.00 1.00 9.05 • • • • 0.50-1.50 0.40-1.80
• For side plunging, the initial cutting feed is 0.1 mm/t
(1) For general applications
(2) Reinforced cutting edges for interrupted cut and unfavorable conditions
For tools, see pages: FFV-D-R-VN07 (308)
Averaged Cutting Data for FFV-07 Fast Feed Cutters
Workpiece material Cutting
ISO class ISCAR Typical material speed Feed
DIN/ mat. Hardness AISI/SAE/ Insert Carbide D.O.C. Vc fz
ISO 513 Description group* HB ASTM DIN W.-Nr. type grade ap [mm] [m/min] [mm/tooth] Coolant
IC808 150-220 0.50-1.30 Dry
IC830 140-200 0.60-1.60 Dry/Wet
Non-alloy steel 1-5 130-180 1020 1.0402
IC845 130-180 0.70-1.80 Dry/Wet
IC5400 150-250 0.50-1.10 Dry
IC808 140-200 0.50-1.20 Dry
IC830 120-180 0.50-1.50 Dry/Wet
6-8 260-300 4340 1.6582
IC845 100-160 0.60-1.60 Dry/Wet
IC5400 140-220 0.50-1.30 Dry
Low alloy steel
IC808 130-180 0.50-1.20 Dry
P 9 HRC 35-42** 3135 1.5710 ER / ETR IC830 0.5-1.5 120-160 0.50-1.40 Dry/Wet
IC845 100-150 0.50-1.50 Dry/Wet
IC5400 130-190 0.50-1.10 Dry
IC808 120-170 0.50-1.20 Dry
IC830 100-150 0.50-1.30 Dry/Wet
High alloy steel 10-11 200-220 H13 1.2344
IC845 90-140 0.50-1.40 Dry/Wet
IC5400 120-180 0.50-1.10 Dry
Ferritic/ IC808 110-160 0.50-1.20 Dry
martensitic 12-13 200 420 1.4021 IC830 100-150 0.50-1.30 Dry/Wet
stainless steel IC845 100-140 0.50-1.40 Dry/Wet
IC5400 110-160 0.50-1.10 Dry
IC840 80-140 0.40-0.60
IC830 80-120 0.40-0.70
M Austenitic 14 200 304L 1.4306 ER IC882 0.5-1.5 80-130 0.40-0.90 Wet
stainless steel IC5820 100-160 0.40-0.80
IC808 100-160 0.40-0.70
K Grey cast iron 15-16 250 Class 40 Class 0.6025 (GG25) ER / ETR IC810 0.5-1.5 150-220 0.50-1.80 Dry
Nodular cast iron 17-18 200 65-45-12 0.7050 (GGG50) IC810 120-200 0.50-1.80
IC808 25-40 0.40-0.60
IC840 25-35 0.40-0.50
33-35 340 Inconel 718 2.4668 IC882 20-30 0.50-0.80
IC5820 25-35 0.50-0.70
S High temperature ER IC830 0.5-1.5 20-30 0.40-0.60 Wet
alloys IC808 30-60 0.40-0.70
IC840 25-35 0.40-0.60
3.7165(Ti6AI4V
36-37 HRC30-32 AMS R56400 IC882 25-35 0.40-0.90
ELI) IC5820 20-30 0.40-0.80
IC830 20-30 0.40-0.70
H Hardened steel 38.1 HRC 45-49 HARDOX 450 plate ETR IC808 0.5-1.5 75-90 0.40-0.80 Dry
* ISCAR material group in accordance with VDI 3323 standard
** Quenched and tempered
For machining in unstable conditions, the recommended cutting data should be reduced by 20-30%
