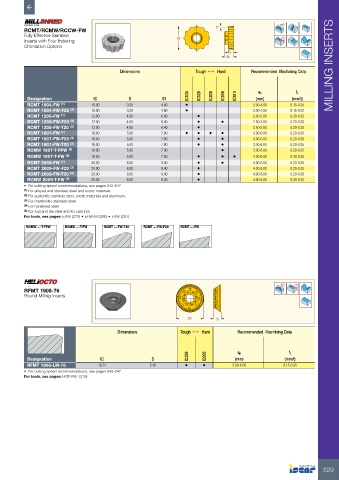

Page 531 - ISCAR(MILLINGCATALOG 38_2021)

7˚
RCMT/RCMW/RCCW-FW
Fully Effective Serrated
Inserts with Four Indexing IC Rd°
Orientation Options
S
S1

Dimensions Tough 1 Hard Recommended Machining Data MILLING INSERTS

IC830 IC928 IC808 IC908 IC910 ap fz
Designation IC S S1 (mm) (mm/t)
RCMT 1004-FW (1) 10.00 3.20 4.80 • 2.00-4.00 0.15-0.30
RCMT 1004-FW-F20 (2) 10.00 3.20 4.80 • 2.00-4.00 0.15-0.30
RCMT 1206-FW (1) 12.00 4.00 6.40 • 2.50-5.00 0.20-0.35
RCMT 1206-FW-F20 (2) 12.00 4.00 6.40 • • 2.50-5.00 0.20-0.35
RCMT 1206-FW-T20 (3) 12.00 4.00 6.40 • 2.50-5.00 0.20-0.35
RCMT 1607-FW (1) 16.00 5.00 7.90 • • • • 3.00-6.00 0.20-0.35
RCMT 1607-FW-F20 (2) 16.00 5.00 7.90 • • 3.00-6.00 0.20-0.35
RCMT 1607-FW-T20 (3) 16.00 5.00 7.90 • • 3.00-6.00 0.20-0.35
RCMW 1607-T-FPW (4) 16.00 5.00 7.90 • 3.00-6.00 0.20-0.35
RCMW 1607-T-FW (5) 16.00 5.00 7.90 • • • 3.00-6.00 0.20-0.35
RCMT 2009-FW (1) 20.00 6.00 9.40 • • 4.00-8.00 0.20-0.35
RCMT 2009-FW-F20 (2) 20.00 6.00 9.40 • 4.00-8.00 0.20-0.35
RCMT 2009-FW-T20 (3) 20.00 6.00 9.40 • 4.00-8.00 0.20-0.35
RCMW 2009-T-FW (5) 20.00 6.00 9.40 • 4.00-8.00 0.20-0.35
• For cutting speed recommendations, see pages 542-547
(1) For alloyed and stainless steel and exotic materials.
(2) For austenitic stainless steel, exotic materials and aluminum.
(3) For martensitic stainless steel
(4) For hardened steel
(5) For tool and die steel and for cast iron
For tools, see pages: ERW (279) • ERW-M (280) • FRW (281)
RCMW ...-T-FPW RCMW ...-T-FW RCMT ...-FW-T20 RCMT ...-FW-F20 RCMT ...-FW

Rd°

RFMT 1905-76 3 4 5
Round Milling Inserts
6
2
7
1
8
IC S
Dimensions Tough 1 Hard Recommended Machining Data

IC328 IC928 ap fz
Designation IC S (mm) (mm/t)
RFMT 1905-LM-76 19.74 5.48 • • 3.00-8.00 0.15-0.25
• For cutting speed recommendations, see pages 542-547
For tools, see pages: HOF-R07 (219)

529
