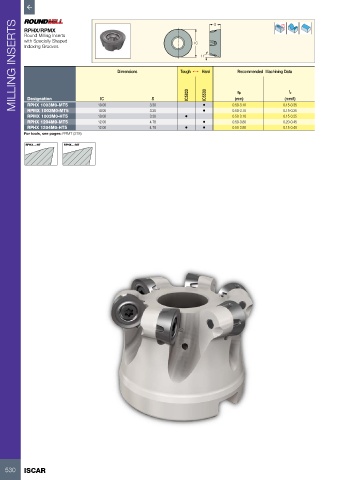

MILLING INSERTS RPHX/RPMX Dimensions Tough 1 Hard S Recommended Machining Data
Rd°
Round Milling Inserts
with Specially Shaped
IC
Indexing Grooves
11˚

fz
ap
(mm)
S
IC
(mm/t)
Designation
RPHX 1003M0-MT5
•
RPMX 1003M0-MT5
0.50-3.10
0.15-0.25
10.00
3.30
0.50-3.10
0.15-0.25
RPMX 1003M0-HT5 10.00 3.30 • IC5820 • IC5500 0.50-3.10 0.15-0.35
10.00
3.30
RPHX 1204M0-MT5 12.00 4.78 • 0.50-3.80 0.20-0.45
RPHX 1204M0-HT5 12.00 4.78 • • 0.50-3.80 0.15-0.40
For tools, see pages: FRMT (278)
RPHX...-HT RPHX...-MT
