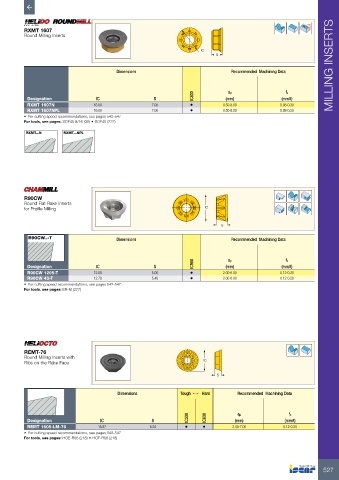

Page 529 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
RXMT 1607
Round Milling Inserts

IC
S

Dimensions Recommended Machining Data MILLING INSERTS

IC830 ap fz
Designation IC S (mm) (mm/t)
RXMT 1607N 16.00 7.00 • 0.50-8.00 0.08-0.30
RXMT 1607NPL 16.00 7.00 • 0.50-8.00 0.08-0.30
• For cutting speed recommendations, see pages 542-547
For tools, see pages: SOE45 8/16 (38) • SOF45 (222)

RXMT...N RXMT...NPL

R90CW
Round Flat Rake Inserts
for Profile Milling IC

S

R90CW..-T Dimensions Recommended Machining Data

IC908 ap fz
Designation IC S (mm) (mm/t)
R90CW 1205-T 12.00 5.00 • 2.00-6.00 0.12-0.20
R90CW 43-T 12.70 5.40 • 2.00-6.00 0.12-0.20
• For cutting speed recommendations, see pages 542-547
For tools, see pages: ER-M (277)

REMT-76
Round Milling Inserts with 8 1 2
Ribs on the Rake Face 7 4 3 IC
6
5
S

Dimensions Tough 1 Hard Recommended Machining Data

IC330 IC830 ap fz
Designation IC S (mm) (mm/t)
REMT 1505-LM-76 15.87 5.24 • • 3.00-7.00 0.12-0.20
• For cutting speed recommendations, see pages 542-547
For tools, see pages: HOE-R06 (218) • HOF-R06 (218)

527
