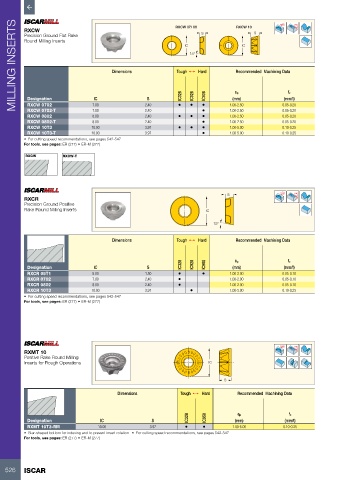

Page 528 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS RXCW Dimensions RXCW 07/ 08 S Recommended Machining Data Rd°
RXCW 10
S
Precision Ground Flat Rake

Round Milling Inserts
IC
IC

15°
Tough 1 Hard

ap
fz
(mm)
(mm/t)
IC
S
Designation
RXCW 0702
•
1.00-2.50
2.40
7.00
0.05-0.20
RXCW 0702-T
•
•
•
0.05-0.20
2.40
8.00
1.00-2.50
RXCW 0802 7.00 2.40 • IC328 • IC928 • IC908 1.00-2.50 0.05-0.20
RXCW 0802-T 8.00 2.40 • 1.00-2.50 0.05-0.20
RXCW 10T3 10.00 3.97 • • • 1.00-5.00 0.10-0.25
RXCW 10T3-T 10.00 3.97 • 1.00-5.00 0.10-0.25
• For cutting speed recommendations, see pages 542-547
For tools, see pages: ER (277) • ER-M (277)
RXCW RXCW-T

Rd°
RXCR S
Precision Ground Positive
Rake Round Milling Inserts IC
15°
Dimensions Tough 1 Hard Recommended Machining Data

fz
ap
Designation IC S IC328 IC928 IC908 (mm) (mm/t)
RXCR 05T1 5.00 1.50 • • 1.00-2.00 0.05-0.10
RXCR 0702 7.00 2.40 • 1.00-2.00 0.05-0.10
RXCR 0802 8.00 2.40 • 1.00-2.00 0.05-0.10
RXCR 10T3 10.00 3.97 • 1.00-5.00 0.10-0.25
• For cutting speed recommendations, see pages 542-547
For tools, see pages: ER (277) • ER-M (277)

Rd°
RXMT 10
Positive Rake Round Milling
Inserts for Rough Operations IC

S

Dimensions Tough 1 Hard Recommended Machining Data

IC328 IC950 ap fz
Designation IC S (mm) (mm/t)
RXMT 10T3-RM 10.00 3.97 • • 1.00-5.00 0.10-0.25
• Star-shaped bottom for indexing and to prevent insert rotation • For cutting speed recommendations, see pages 542-547
For tools, see pages: ER (277) • ER-M (277)

526 ISCAR
