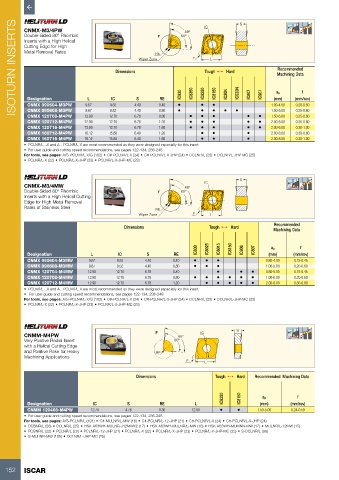

Page 154 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS CNMX-M3/4PW Dimensions Wiper Zone RE F 80º 88º IC8350 F IC8250 IC L IC8150 IC20N IC520N S IC807 IC907 ap 95 º 95 º f 95 º

Double-Sided 80° Rhombic
Inserts with a High Helical
Cutting Edge for High
Metal Removal Rates

Recommended
Tough 1 Hard
Machining Data

IC830
(mm)
L
Designation
RE
S
IC
0.20-0.50
CNMX 090604-M3PW
9.52
9.67
•
•
•
0.80
4.40
CNMX 090608-M3PW
9.67
9.52
0.25-0.60
1.50-5.00
•
•
CNMX 120708-M4PW
6.78
0.80
1.50-6.00
0.25-0.60
•
•
•
•
•
6.78
12.90
2.00-6.00
12.70
CNMX 120712-M4PW 12.90 12.70 4.40 0.40 • • • • • • • • 1.00-4.50 (mm/rev)
0.30-0.80
1.20
CNMX 120716-M4PW 12.90 12.70 6.78 1.60 • • • • • 2.00-6.00 0.30-1.00
CNMX 160712-M4PW 16.12 15.88 6.40 1.20 • • • 2.00-8.00 0.30-0.80
CNMX 160716-M4PW 16.12 15.88 6.40 1.60 • • • 2.00-8.00 0.30-1.00
• PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25)
• PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

S 95 º
CNMX-M3/4MW 88º IC 95 º 95 º
Double-Sided 80° Rhombic F 80º
Inserts with a High Helical Cutting
Edge for High Metal Removal
Rates of Stainless Steel RE
Wiper Zone F L
Recommended
Dimensions Tough 1 Hard
Machining Data
IC830 IC6025 IC6015 IC8150 IC806 IC807 ap f
Designation L IC S RE (mm) (mm/rev)
CNMX 090604-M3MW 9.67 9.52 4.40 0.40 • • • 0.80-4.00 0.15-0.45
CNMX 090608-M3MW 9.67 9.52 4.40 0.80 • • • 1.00-5.00 0.20-0.60
CNMX 120704-M4MW 12.90 12.70 6.78 0.40 • • • 0.80-5.00 0.15-0.45
CNMX 120708-M4MW 12.90 12.70 6.78 0.80 • • • • • • 1.00-6.00 0.20-0.60
CNMX 120712-M4MW 12.90 12.70 6.78 1.20 • • • • • 2.00-6.00 0.30-0.80
• PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25)
• PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

S 95 º
CNMM-M4PW F 88º IC 95 º 95 º
Very Positive Radial Insert 80º
with a Helical Cutting Edge
and Positive Rake for Heavy RE
Machining Applications
F L
Dimensions Tough 1 Hard Recommended Machining Data
IC8250 IC8150 ap f
Designation IC S RE L (mm) (mm/rev)
CNMM 120408-M4PW 12.70 4.76 0.80 12.90 • • 1.50-5.00 0.24-0.59
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)
• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)
• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)
• S-MULNR-MW (105) • DCLNR/L-JHP-MC (25)

152 ISCAR
