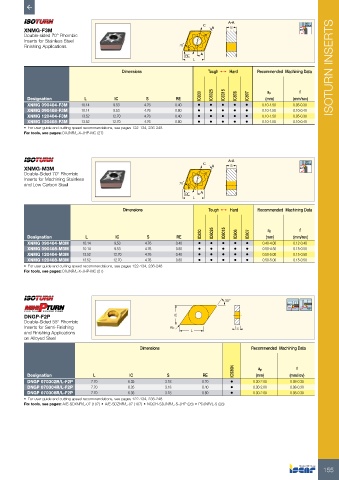

Page 157 - ISCAR(TURNING-CATALOG-42-2022)

A-A 15°
XNMG-F3M IC A S 93 º MAX
Double-sided 70° Rhombic
Inserts for Stainless Steel
Finishing Applications 70
RE A
L
Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC830 IC6025 IC6015 IC806 IC807 ap f
Designation L IC S RE (mm) (mm/rev)
XNMG 090404-F3M 10.14 9.53 4.76 0.40 • • • • • 0.10-1.50 0.05-0.30
XNMG 090408-F3M 10.14 9.53 4.76 0.80 • • • • • 0.10-1.50 0.10-0.40
XNMG 120404-F3M 13.52 12.70 4.76 0.40 • • • • • 0.10-1.50 0.05-0.30
XNMG 120408-F3M 13.52 12.70 4.76 0.80 • • • • • 0.10-1.50 0.10-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: DXJNR/L-X-JHP-MC (27)

IC A-A 15°
XNMG-M3M A S 93 º MAX
Double-Sided 70° Rhombic
Inserts for Machining Stainless
and Low Carbon Steel 70
RE A
L
Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC6025 IC6015 IC806 IC807 ap f
Designation L IC S RE (mm) (mm/rev)
XNMG 090404-M3M 10.14 9.53 4.76 0.40 • • • • • 0.40-4.00 0.12-0.40
XNMG 090408-M3M 10.14 9.53 4.76 0.80 • • • • • 0.50-4.50 0.15-0.50
XNMG 120404-M3M 13.52 12.70 4.76 0.40 • • • • • 0.50-5.00 0.15-0.50
XNMG 120408-M3M 13.52 12.70 4.76 0.80 • • • • • 0.50-5.00 0.15-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: DXJNR/L-X-JHP-MC (27)

55°
100º 93º

DNGP-F2P IC
Double-Sided 55° Rhombic
Inserts for Semi-Finishing RE S
and Finishing Applications L
on Alloyed Steel
Dimensions Recommended Machining Data

IC530N ap f
Designation L IC S RE (mm) (mm/rev)
DNGP 070302R/L-F2P 7.70 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30
DNGP 070304R/L-F2P 7.70 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30
DNGP 070308R/L-F2P 7.70 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E-SDXNR/L-07 (107) • A/E-SDZNR/L-07 (107) • NQCH-SDJNR/L-S-JHP (28) • PDJNR/L-S (28)

155
