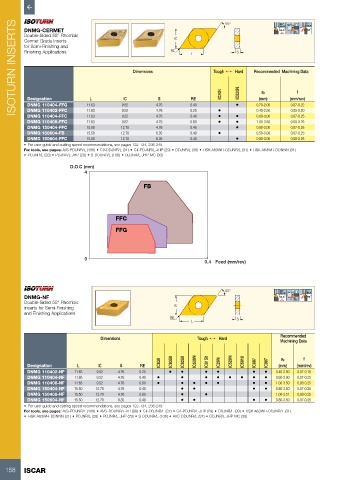

Page 160 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS DNMG-CERMET Dimensions RE IC L Tough 1 Hard Recommended Machining Data 93 º
55°
27°
60°
93º-95º
MAX
MAX
62.5 º
50º
MAX
Double-Sided 55° Rhombic
Cermet Grade Inserts
for Semi-Finishing and
Finishing Applications
S
IC520N
f
IC20N
ap
S
RE
(mm)
IC
L
Designation
DNMG 110404-FFG
0.07-0.22
11.63
0.05-0.20
9.52
0.40-2.50
0.20
4.76
DNMG 110402-FFC
•
•
9.52
4.76
0.40
DNMG 110404-FFC
0.07-0.25
0.80-3.00
11.63
•
•
DNMG 110408-FFC 11.63 9.52 4.76 0.40 • • 0.70-2.00 (mm/rev)
0.80
4.76
0.08-0.25
1.00-3.50
11.63
9.52
DNMG 150404-FFC 15.50 12.70 4.76 0.40 • 0.80-3.00 0.07-0.25
DNMG 150604-FB 15.50 12.70 6.35 0.40 • 0.50-3.00 0.07-0.23
DNMG 150604-FFC 15.50 12.70 6.35 0.40 • 0.80-3.00 0.08-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)
• PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)
D.O.C (mm)
4
FB
FFC
FFG
0
0.4 Feed (mm/rev)

55° 60° 27°
MAX
DNMG-NF 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts for Semi-Finishing IC
and Finishing Applications
RE S
L
Dimensions Tough 1 Hard Recommended
Machining Data
IC830 IC8350 IC8250 IC530N IC8150 IC20N IC520N IC5010 IC807 IC907 ap f
Designation L IC S RE (mm) (mm/rev)
DNMG 110402-NF 11.63 9.52 4.76 0.20 • • • • • • 0.40-2.50 0.07-0.18
DNMG 110404-NF 11.63 9.52 4.76 0.40 • • • • • • • • 0.80-3.00 0.07-0.25
DNMG 110408-NF 11.63 9.52 4.76 0.80 • • • • • • • 1.00-3.50 0.08-0.25
DNMG 150404-NF 15.50 12.70 4.76 0.40 • • • • 0.80-3.50 0.07-0.25
DNMG 150408-NF 15.50 12.70 4.76 0.80 • • 1.00-3.51 0.08-0.25
DNMG 150604-NF 15.50 12.70 6.35 0.40 • • • • 0.80-3.50 0.07-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

158 ISCAR
