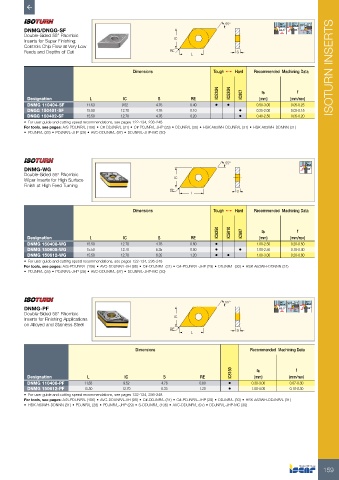

Page 161 - ISCAR(TURNING-CATALOG-42-2022)

55° 60° 27°
MAX
DNMG/DNGG-SF 62.5 º MAX 93º-95º 50º
93 º
Double-Sided 55° Rhombic MAX
Inserts for Super Finishing; IC
Controls Chip Flow at Very Low
Feeds and Depths of Cut RE L S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC530N IC520N IC907 ap f
Designation L IC S RE (mm) (mm/rev)
DNMG 110404-SF 11.63 9.52 4.76 0.40 • • 0.50-3.00 0.05-0.25
DNGG 150401-SF 15.50 12.70 4.76 0.10 • 0.25-2.00 0.03-0.15
DNGG 150402-SF 15.50 12.70 4.76 0.20 • 0.40-2.50 0.05-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)
• PDJNR/L (28) • PDJNR/L-JHP (29) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

55° 27°
DNMG-WG MAX
93 º
Double-Sided 55° Rhombic
Wiper Inserts for High Surface IC
Finish at High Feed Turning
RE S
L

Dimensions Tough 1 Hard Recommended Machining Data

IC8250 IC5010 IC807 ap f
Designation L IC S RE (mm) (mm/rev)
DNMG 150408-WG 15.50 12.70 4.76 0.80 • 1.00-2.50 0.20-0.50
DNMG 150608-WG 15.50 12.70 6.35 0.80 • • 1.00-2.50 0.18-0.40
DNMG 150612-WG 15.50 12.70 6.35 1.20 • • 1.00-3.00 0.20-0.80
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDNNN (31)
• PDJNR/L (28) • PDJNR/L-JHP (29) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

55° 60° 27°
MAX
DNMG-PF 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts for Finishing Applications IC
on Alloyed and Stainless Steel
RE S
L

Dimensions Recommended Machining Data

IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
DNMG 110408-PF 11.63 9.52 4.76 0.80 • 0.30-3.00 0.07-0.30
DNMG 150612-PF 15.50 12.70 6.35 1.20 • 1.00-4.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

159
