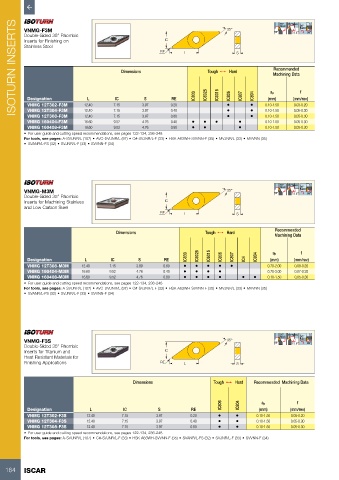

ISOTURN INSERTS VNMG-F3M Dimensions RE IC L Tough 1 Hard S ap Recommended 30° 93 º
50°
70°MAX
MAX
MAX
35°
93°
72.5 º
Double-Sided 35° Rhombic
Inserts for Finishing on
Stainless Steel
Machining Data

f
IC
RE
S
Designation
L
(mm)
0.03-0.20
VNMG 12T302-F3M
•
•
VNMG 12T304-F3M
0.40
0.05-0.30
7.15
0.10-1.50
3.97
12.40
•
•
0.05-0.30
0.10-1.50
12.40
3.97
0.80
7.15
VNMG 12T308-F3M
0.05-0.30
VNMG 160404-F3M 12.40 7.15 3.97 0.20 • IC830 • IC6025 • IC6015 • IC806 • IC807 • IC804 0.10-1.50 (mm/rev)
9.52
4.76
16.60
0.40
0.10-1.50
VNMG 160408-F3M 16.60 9.52 4.76 0.80 • • • 0.10-1.50 0.05-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)
• SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

50° 70°MAX
MAX
VNMG-M3M 35° 93° MAX 72.5 º 30° 93 º
Double-Sided 35° Rhombic
Inserts for Machining Stainless IC
and Low Carbon Steel
RE L S
Recommended
Dimensions Tough 1 Hard Machining Data
IC830 IC6025 IC6015 IC806 IC807 IC804 ap f
Designation L IC S RE IC4 (mm) (mm/rev)
VNMG 12T308-M3M 12.40 7.15 3.89 0.80 • • • • • 0.70-2.00 0.08-0.20
VNMG 160404-M3M 16.60 9.52 4.76 0.40 • • • • 0.70-3.00 0.07-0.20
VNMG 160408-M3M 16.60 9.52 4.76 0.80 • • • • • • 0.10-1.50 0.05-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)
• SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

50° 70°MAX
MAX
VNMG-F3S 35° 93° MAX 72.5 º 30° 93 º
Double-Sided 35° Rhombic
Inserts for Titanium and IC
Heat Resistant Materials for
Finishing Applications RE L S
Dimensions Tough 1 Hard Recommended Machining Data

IC806 IC804 ap f
Designation L IC S RE (mm) (mm/rev)
VNMG 12T302-F3S 12.40 7.15 3.97 0.20 • • 0.10-1.50 0.05-0.20
VNMG 12T304-F3S 12.40 7.15 3.97 0.40 • • 0.10-1.50 0.05-0.30
VNMG 12T308-F3S 12.40 7.15 3.97 0.80 • • 0.10-1.50 0.05-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SVUNR/L (107) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

164 ISCAR
