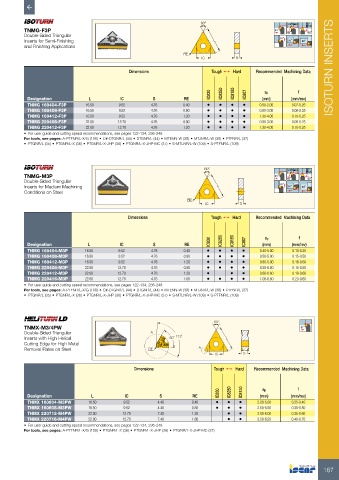

Page 169 - ISCAR(TURNING-CATALOG-42-2022)

60° 22°MAX 55°
TNMG-F3P 91 º 93 º MAX
60 º
Double-Sided Triangular 91 º
Inserts for Semi-Finishing L 91 º 95 º
and Finishing Applications
RE
IC S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC830 IC8250 IC8150 IC807 ap f
Designation L IC S RE (mm) (mm/rev)
TNMG 160404-F3P 16.50 9.52 4.76 0.40 • • • • 0.50-2.00 0.07-0.25
TNMG 160408-F3P 16.50 9.52 4.76 0.80 • • • • 0.90-3.00 0.08-0.25
TNMG 160412-F3P 16.50 9.52 4.76 1.20 • • • • 1.30-4.00 0.10-0.25
TNMG 220408-F3P 22.00 12.70 4.76 0.80 • • • • 0.90-3.00 0.08-0.25
TNMG 220412-F3P 22.00 12.70 4.76 1.20 • • • • 1.30-4.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)
• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

60° 22°MAX 55°
TNMG-M3P 91 º 93 º MAX
60 º
Double-Sided Triangular
Inserts for Medium Machining L 91 º 91 º 95 º
Conditions on Steel
RE
IC S

Dimensions Tough 1 Hard Recommended Machining Data

f
ap
Designation L IC S RE IC830 IC8250 IC8150 IC807 (mm) (mm/rev)
TNMG 160404-M3P 16.50 9.52 4.76 0.40 • • • • 0.40-5.00 0.10-0.30
TNMG 160408-M3P 16.50 9.52 4.76 0.80 • • • • 0.50-5.00 0.15-0.50
TNMG 160412-M3P 16.50 9.52 4.76 1.20 • • • • 0.80-5.00 0.18-0.60
TNMG 220408-M3P 22.00 12.70 4.76 0.80 • • • • 0.50-6.60 0.15-0.50
TNMG 220412-M3P 22.00 12.70 4.76 1.20 • • • 0.80-6.60 0.18-0.60
TNMG 220416-M3P 22.00 12.70 4.76 1.60 • • • • 1.00-6.60 0.23-0.65
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)
• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

60°
TNMX-M3/4PW 91 º
Double-Sided Triangular A
Inserts with High Helical 60˚ 113˚ L
Cutting Edge for High Metal
Removal Rates on Steel RE A
IC S

Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC8250 IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
TNMX 160604-M3PW 16.50 9.52 4.40 0.40 • • • 2.00-5.00 0.25-0.40
TNMX 160608-M3PW 16.50 9.52 4.40 0.80 • • • 2.50-5.50 0.30-0.50
TNMX 220712-M4PW 22.00 12.70 7.40 1.20 • • 3.00-6.00 0.35-0.60
TNMX 220716-M4PW 22.00 12.70 7.40 1.60 • • 3.50-6.50 0.40-0.70
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37)
