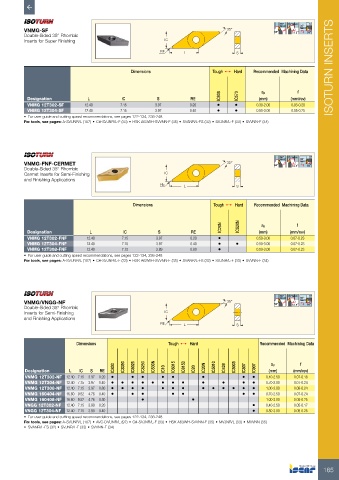

Page 167 - ISCAR(TURNING-CATALOG-42-2022)

50° 70°MAX
MAX
VNMG-SF 35° 93° MAX 72.5 º 30° 93 º
Double-Sided 35° Rhombic
Inserts for Super Finishing IC
RE L S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC908 IC570 ap f
Designation L IC S RE (mm) (mm/rev)
VNMG 12T302-SF 12.40 7.15 3.97 0.20 • • 0.30-2.00 0.03-0.20
VNMG 12T304-SF 12.40 7.15 3.97 0.40 • • 0.50-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SVUNR/L (107) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

50° 70°MAX
MAX
VNMG-FNF-CERMET 35° 93° MAX 72.5 º 30° 93 º
Double-Sided 35° Rhombic
Cermet Inserts for Semi-Finishing IC
and Finishing Applications
RE L S

Dimensions Tough 1 Hard Recommended Machining Data

IC20N IC520N ap f
Designation L IC S RE (mm) (mm/rev)
VNMG 12T302-FNF 12.40 7.15 3.97 0.20 • 0.50-3.00 0.07-0.23
VNMG 12T304-FNF 12.40 7.15 3.97 0.40 • • 0.50-3.00 0.07-0.23
VNMG 12T308-FNF 12.40 7.15 3.89 0.80 • 0.50-3.00 0.07-0.23
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SVUNR/L (107) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

50° 70°MAX 30°

VNMG/VNGG-NF 35° 93° MAX 72.5 º MAX 93 º
Double-Sided 35° Rhombic
Inserts for Semi-Finishing IC
and Finishing Applications
RE L S

Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC8350 IC6025 IC8250 IC530N IC6015 IC8150 IC20N IC5010 IC428 IC5005 IC807 IC907 ap f
Designation L IC S RE IC10 IC20 (mm) (mm/rev)
VNMG 12T302-NF 12.40 7.15 3.97 0.20 • • • • • • • • 0.40-2.50 0.07-0.18
VNMG 12T304-NF 12.40 7.15 3.97 0.40 • • • • • • • • • • • • 0.70-2.00 0.07-0.24
VNMG 12T308-NF 12.40 7.15 3.97 0.80 • • • • • • • • • • • • • 1.00-3.00 0.08-0.24
VNMG 160404-NF 16.60 9.52 4.76 0.40 • • • • • • • 0.70-2.50 0.07-0.24
VNMG 160408-NF 16.60 9.52 4.76 0.80 • • 1.00-3.00 0.08-0.25
VNGG 12T302-NF 12.40 7.15 3.90 0.20 • 0.40-2.50 0.05-0.17
VNGG 12T304-NF 12.40 7.15 3.90 0.40 • 0.50-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)
• SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

165
