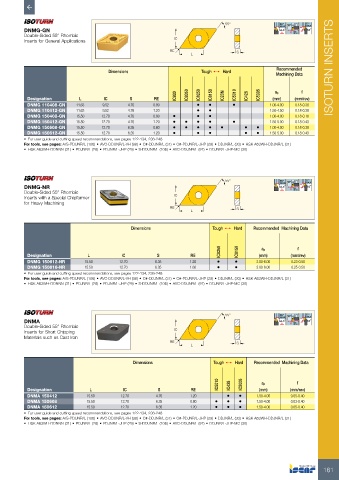

Page 163 - ISCAR(TURNING-CATALOG-42-2022)

55° 60° 27°
MAX
DNMG-GN 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts for General Applications IC
RE S
L

Dimensions Tough 1 Hard Recommended ISOTURN INSERTS
Machining Data

IC830 IC8350 IC8250 IC8150 IC20N IC5010 IC428 IC5005 ap f
Designation L IC S RE (mm) (mm/rev)
DNMG 110408-GN 11.63 9.52 4.76 0.80 • • • 1.00-4.00 0.18-0.38
DNMG 110412-GN 11.63 9.52 4.76 1.20 • • 1.50-4.50 0.18-0.38
DNMG 150408-GN 15.50 12.70 4.76 0.80 • • • 1.00-4.00 0.18-0.18
DNMG 150412-GN 15.50 12.70 4.76 1.20 • • • • • 1.50-5.00 0.18-0.43
DNMG 150608-GN 15.50 12.70 6.35 0.80 • • • • • • • 1.00-4.00 0.18-0.38
DNMG 150612-GN 15.50 12.70 6.35 1.20 • • • • • 1.50-5.00 0.18-0.43
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

55° 60° 27°
MAX
DNMG-NR 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts with a Special Chipformer IC
for Heavy Machining
RE S
L
Dimensions Tough 1 Hard Recommended Machining Data

IC8250 IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
DNMG 150612-NR 15.50 12.70 6.35 1.20 • • 2.00-6.00 0.23-0.50
DNMG 150616-NR 15.50 12.70 6.35 1.60 • • 2.00-6.00 0.25-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

55° 60° 27°
MAX
DNMA 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts for Short Chipping IC
Materials such as Cast Iron
RE S
L

Dimensions Tough 1 Hard Recommended Machining Data

IC5010 IC428 IC5005 ap f
Designation L IC S RE (mm) (mm/rev)
DNMA 150412 15.50 12.70 4.76 1.20 • • 1.50-4.00 0.05-0.40
DNMA 150608 15.50 12.70 6.35 0.80 • • • 1.50-4.00 0.03-0.40
DNMA 150612 15.50 12.70 6.35 1.20 • • • 1.50-4.00 0.05-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

161
