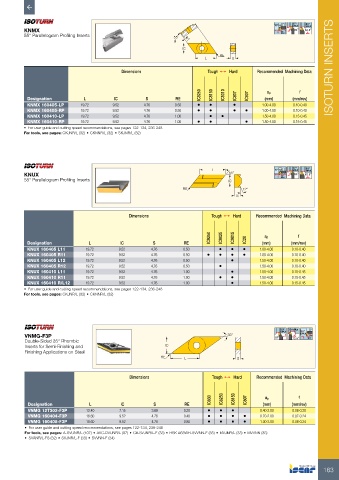

P. 165

27°  60°
                                                                                                            MAX
         KNMX                                                                                     93º-95º 50º  MAX  62.5 º
                                                                                                        93 º
         55° Parallelogram Profiling Inserts                  55˚                                   MAX
                                                                   7˚
                                                                 IC
                                                                              RE
                                                                         L        S
                                            Dimensions                    Tough 1   Hard   Recommended  Machining Data  ISOTURN INSERTS



                                                                       IC8250  IC8150  IC5010  IC807  IC907  ap  f
           Designation        L          IC         S          RE                             (mm)      (mm/rev)
           KNMX 160405-LP    19.72       9.52       4.76      0.50    •    •       •         1.00-4.00  0.10-0.40
           KNMX 160405-RP    19.72       9.52       4.76      0.50    •    •       •   •     1.00-4.00  0.10-0.40
           KNMX 160410-LP    19.72       9.52       4.76      1.00         •   •             1.50-4.00  0.15-0.45
           KNMX 160410-RP    19.72       9.52       4.76      1.00    •    •           •     1.50-4.00  0.15-0.45
         •  For user guide and cutting speed recommendations, see pages 122-134, 236-248
         For tools, see pages: CKJNR/L (32) • CKNNR/L (32) • SKJNR/L (32)



                                                                            L                           27°  60°
                                                                                                            MAX
          KNUX                                                                   55°              93º-95º 50º  MAX  62.5 º
                                                                                                        93 º
          55° Parallelogram Profiling Inserts                                    IC                 MAX
                                                                 RE                   12°
                                                                                    S



                                              Dimensions                   Tough 1   Hard  Recommended  Machining Data


                                                                           IC9250  IC9025  IC9015  IC20  ap  f
           Designation          L          IC          S          RE                         (mm)      (mm/rev)
           KNUX 160405 L11     19.72       9.52       4.76       0.50         •   •   •     1.00-4.00   0.10-0.40
           KNUX 160405 R11     19.72       9.52       4.76       0.50     •   •   •   •     1.00-4.00   0.10-0.40
           KNUX 160405 L12     19.72       9.52       4.76       0.50             •         1.50-4.00   0.10-0.40
           KNUX 160405 R12     19.72       9.52       4.76       0.50         •             1.50-4.00   0.10-0.40
           KNUX 160410 L11     19.72       9.52       4.76       1.00             •         1.50-4.00   0.15-0.45
           KNUX 160410 R11     19.72       9.52       4.76       1.00         •   •         1.50-4.00   0.15-0.45
           KNUX 160410 R/L12   19.72       9.52       4.76       1.00             •         1.50-4.00   0.15-0.45
          •  For user guide and cutting speed recommendations, see pages 122-134, 236-248
          For tools, see pages: CKJNR/L (32) • CKNNR/L (32)



                                                                                                    50°  70°MAX

                                                                                                           MAX
          VNMG-F3P                                                               35°              93°  MAX  72.5 º  30°  93 º
          Double-Sided 35° Rhombic
          Inserts for Semi-Finishing and                   IC
          Finishing Applications on Steel
                                                          RE      L                 S


                                               Dimensions                   Tough 1   Hard  Recommended  Machining Data



                                                                           IC830  IC8250  IC8150  IC807  ap  f
           Designation          L          IC          S          RE                         (mm)      (mm/rev)
           VNMG 12T302-F3P     12.40       7.15       3.89        0.20    •   •   •         0.40-2.00   0.08-0.20
           VNMG 160404-F3P     16.60       9.52       4.76        0.40    •   •   •    •    0.70-2.00   0.07-0.24
           VNMG 160408-F3P     16.60       9.52       4.76        0.80    •   •   •    •    1.00-3.00   0.08-0.24
          •  For user guide and cutting speed recommendations, see pages 122-134, 236-248
          For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)
          •  SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)
