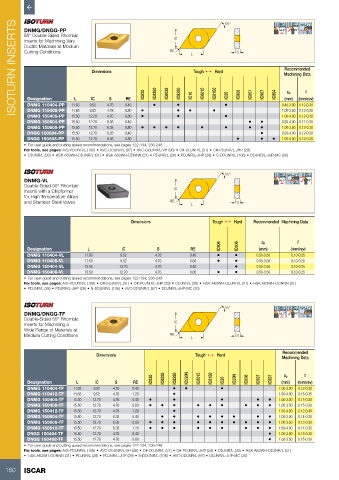

Page 162 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS DNMG/DNGG-PP Dimensions IC830 IC8350 IC6025 RE IC IC8250 L Tough 1 Hard 55° S IC806 IC807 IC907 IC804 62.5 º Machining Data
27°
60°
MAX
93º-95º
MAX
93 º
50º
MAX
55° Double-Sided Rhombic
Inserts for Machining Very
Ductile Materials at Medium
Cutting Conditions
Recommended
IC6015
IC8150
f
ap
Designation
(mm)
S
RE
IC
(mm/rev)
L
9.52
DNMG 110404-PP
•
0.80
1.00-3.50 0.12-0.30
4.76
11.63
9.52
DNMG 110408-PP
•
•
•
DNMG 150408-PP
1.00-4.00 0.12-0.30
0.80
4.76
15.50
DNMG 150604-PP 11.63 12.70 4.76 0.40 • • • • IC10 • • IC20 • • 0.40-3.00 0.12-0.30
0.50-4.00 0.12-0.30
6.35
15.50
12.70
0.40
DNMG 150608-PP 15.50 12.70 6.35 0.80 • • • • • • • • 1.00-3.50 0.12-0.30
DNGG 150604-PP 15.50 12.70 6.35 0.40 • 0.50-4.00 0.12-0.30
DNGG 150608-PP 15.50 12.70 6.35 0.80 • • • 1.00-4.00 0.12-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L (97) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29)
• DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

55° 60° 27°
MAX
DNMG-VL 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts with a Chipformer IC
for High Temperature Alloys
and Stainless Steel Valves RE L S
Dimensions Tough 1 Hard Recommended Machining Data
IC908 IC806 ap f
Designation L IC S RE (mm) (mm/rev)
DNMG 110404-VL 11.63 9.52 4.76 0.40 • • 0.50-3.50 0.10-0.25
DNMG 110408-VL 11.63 9.52 4.76 0.80 • • 0.50-3.50 0.10-0.25
DNMG 150404-VL 15.50 12.70 4.76 0.40 • 0.50-3.50 0.10-0.25
DNMG 150408-VL 15.50 12.70 4.76 0.80 • • 0.50-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)
• PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

55° 60° 27°
MAX
DNMG/DNGG-TF 62.5 º MAX 93º-95º 50º
93 º
Double-Sided 55° Rhombic MAX
Inserts for Machining a IC
Wide Range of Materials at
Medium Cutting Conditions RE L S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC830 IC6025 IC8250 IC530N IC6015 IC8150 IC20N IC806 IC807 IC907 ap f
Designation L IC S RE IC20 (mm) (mm/rev)
DNMG 110404-TF 11.63 9.52 4.76 0.40 • • • 1.00-3.00 0.12-0.30
DNMG 110412-TF 11.63 9.52 4.76 1.20 • 1.50-4.00 0.15-0.35
DNMG 150404-TF 15.50 12.70 4.76 0.40 • • • • • 1.00-3.00 0.15-0.30
DNMG 150408-TF 15.50 12.70 4.76 0.80 • • • • • • • • • 1.00-3.50 0.15-0.30
DNMG 150412-TF 15.50 12.70 4.76 1.20 • 1.50-4.00 0.12-0.40
DNMG 150604-TF 15.50 12.70 6.35 0.40 • • • • • • • • 1.00-3.00 0.14-0.30
DNMG 150608-TF 15.50 12.70 6.35 0.80 • • • • • • • • • • 1.00-3.50 0.15-0.30
DNMG 150612-TF 15.50 12.70 6.35 1.20 • • • • • • • • • 1.50-4.00 0.11-0.35
DNGG 150404-TF 15.50 12.70 4.76 0.40 • 1.00-3.00 0.15-0.30
DNGG 150408-TF 15.50 12.70 4.76 0.80 • 1.00-3.50 0.15-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

160 ISCAR
