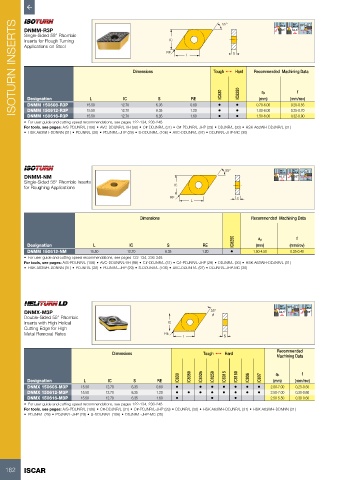

Page 164 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS DNMM-R3P Dimensions RE IC L Tough 1 Hard Recommended Machining Data 50º MAX
55°
27°
60°
93º-95º
MAX
MAX
62.5 º
93 º
Single-Sided 55° Rhombic
Inserts for Rough Turning
Applications on Steel
S

IC8250
f
IC830
ap
RE
L
S
Designation
(mm)
IC
DNMM 150608-R3P
15.50
0.20-0.55
6.35
12.70
•
•
15.50
12.70
0.25-0.70
1.00-6.00
6.35
1.20
DNMM 150612-R3P
•
•
1.60
12.70
0.32-0.90
6.35
DNMM 150616-R3P
15.50
1.50-6.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 0.80 • • 0.70-6.00 (mm/rev)
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

55° 60° 27°
MAX
DNMM-NM 62.5 º MAX 93º-95º 50º
93 º
Single-Sided 55° Rhombic Inserts MAX
for Roughing Applications IC
RE S
L
Dimensions Recommended Machining Data
IC8250 ap f
Designation L IC S RE (mm) (mm/rev)
DNMM 150612-NM 15.50 12.70 6.35 1.20 • 1.50-4.50 0.25-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

60° 27°
MAX
DNMX-M3P 55° 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts with High Helical IC
Cutting Edge for High
Metal Removal Rates RE
L S
Recommended
Dimensions Tough 1 Hard Machining Data
IC830 IC8350 IC6025 IC8250 IC6015 IC8150 IC806 IC807 ap f
Designation L IC S RE (mm) (mm/rev)
DNMX 150608-M3P 15.50 12.70 6.35 0.80 • • • • • • • 2.00-7.00 0.25-0.50
DNMX 150612-M3P 15.50 12.70 6.35 1.20 • • • • • • • • 2.50-7.00 0.30-0.60
DNMX 150616-M3P 15.50 12.70 6.35 1.60 • • • 2.50-5.50 0.30-0.60
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)
• PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

162 ISCAR
