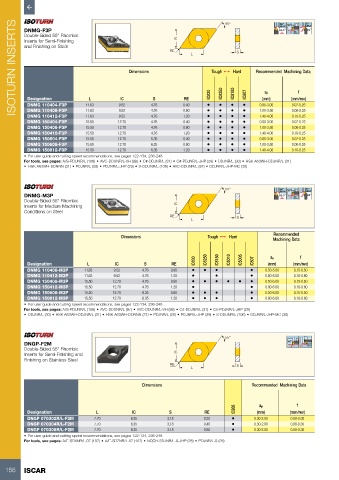

Page 158 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS DNMG-F3P Dimensions RE IC L IC830 Tough 1 Hard IC807 Recommended Machining Data
55°
27°
60°
93º-95º
MAX
MAX
62.5 º
93 º
50º
MAX
Double-Sided 55° Rhombic
Inserts for Semi-Finishing
and Finishing on Steel
S
IC8150
IC8250
f
ap
(mm)
L
Designation
S
IC
RE
9.52
0.07-0.25
DNMG 110404-F3P
•
•
•
•
11.63
1.00-3.50
9.52
4.76
DNMG 110408-F3P
0.08-0.25
0.80
•
•
•
•
1.20
9.52
4.76
11.63
1.40-4.00
0.10-0.25
DNMG 110412-F3P
•
•
•
•
4.76
0.40
0.07-0.25
DNMG 150404-F3P 11.63 12.70 4.76 0.40 • • • • 0.80-3.00 (mm/rev)
0.80-3.00
15.50
DNMG 150408-F3P 15.50 12.70 4.76 0.80 • • • • 1.00-3.50 0.08-0.25
DNMG 150412-F3P 15.50 12.70 4.76 1.20 • • • • 1.40-4.00 0.10-0.25
DNMG 150604-F3P 15.50 12.70 6.35 0.40 • • • • 0.80-3.00 0.07-0.25
DNMG 150608-F3P 15.50 12.70 6.35 0.80 • • • • 1.00-3.50 0.08-0.25
DNMG 150612-F3P 15.50 12.70 6.35 1.20 • • • • 1.40-4.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

55° 60° 27°
MAX
DNMG-M3P 62.5 º 93º-95º 50º MAX
93 º
Double-Sided 55° Rhombic MAX
Inserts for Medium Machining IC
Conditions on Steel
RE S
L
Recommended
Dimensions Tough 1 Hard
Machining Data
f
ap
Designation L IC S RE IC830 IC8250 IC8150 IC5010 IC5005 IC807 (mm) (mm/rev)
DNMG 110408-M3P 11.63 9.52 4.76 0.80 • • • • 0.50-5.00 0.15-0.50
DNMG 110412-M3P 11.63 9.52 4.76 1.20 • • • 0.80-5.00 0.18-0.60
DNMG 150408-M3P 15.50 12.70 4.76 0.80 • • • • • • 0.50-6.00 0.15-0.50
DNMG 150412-M3P 15.50 12.70 4.76 1.20 • • 0.80-6.00 0.18-0.60
DNMG 150608-M3P 15.50 12.70 6.35 0.80 • • • • 0.50-6.00 0.15-0.50
DNMG 150612-M3P 15.50 12.70 6.35 1.20 • • • • 0.80-6.00 0.18-0.60
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L (97) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29)
• DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

55°
DNGP-F2M 100º 93º
Double-Sided 55° Rhombic
Inserts for Semi-Finishing and IC
Finishing on Stainless Steel
RE S
L
Dimensions Recommended Machining Data
IC908 ap f
Designation L IC S RE (mm) (mm/rev)
DNGP 070302R/L-F2M 7.70 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30
DNGP 070304R/L-F2M 7.70 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30
DNGP 070308R/L-F2M 7.70 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E-SDXNR/L-07 (107) • A/E-SDZNR/L-07 (107) • NQCH-SDJNR/L-S-JHP (28) • PDJNR/L-S (28)
