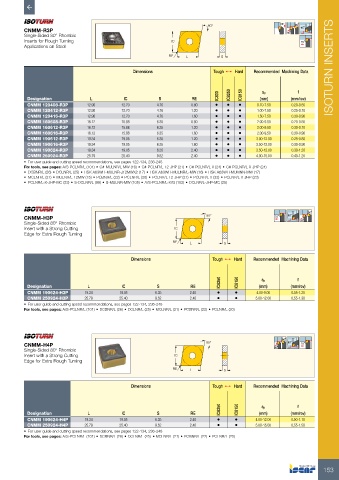

Page 155 - ISCAR(TURNING-CATALOG-42-2022)

75° 95 º
CNMM-R3P 80° 95 º 95 º
Single-Sided 80° Rhombic
Inserts for Rough Turning IC 75 º
Applications on Steel
RE L S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC830 IC8250 IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
CNMM 120408-R3P 12.90 12.70 4.76 0.80 • • • 0.70-7.50 0.20-0.55
CNMM 120412-R3P 12.90 12.70 4.76 1.20 • • • 1.00-7.50 0.25-0.70
CNMM 120416-R3P 12.90 12.70 4.76 1.60 • • • 1.50-7.50 0.30-0.90
CNMM 160608-R3P 16.12 15.88 6.35 0.80 • • • 2.00-9.50 0.20-0.55
CNMM 160612-R3P 16.12 15.88 6.35 1.20 • • • 2.00-9.50 0.30-0.70
CNMM 160616-R3P 16.12 15.88 6.35 1.60 • • • 2.00-9.50 0.30-0.90
CNMM 190612-R3P 19.34 19.05 6.35 1.20 • • • 3.00-12.00 0.25-0.80
CNMM 190616-R3P 19.34 19.05 6.35 1.60 • • • 3.50-12.00 0.30-0.90
CNMM 190624-R3P 19.34 19.05 6.35 2.40 • • • 3.50-12.00 0.30-1.20
CNMM 250924-R3P 25.79 25.40 9.52 2.40 • • • 4.00-15.00 0.40-1.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)
• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)
• MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23)
• PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

95 º
CNMM-H3P 80° 75 º 95 º 95 º
Single-Sided 80° Rhombic
Insert with a Strong Cutting IC
Edge for Extra Rough Turning
RE L S

Dimensions Tough 1 Hard Recommended Machining Data

IC8250 IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
CNMM 190624-H3P 19.34 19.05 6.35 2.40 • • 4.00-9.00 0.55-1.20
CNMM 250924-H3P 25.79 25.40 9.52 2.40 • • 5.00-12.00 0.55-1.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L (101) • DCBNR/L (26) • DCLNR/L (25) • MCLNR/L (21) • PCBNR/L (22) • PCLNR/L (20)

95 º

CNMM-H4P 80° 95 º 95 º 75 º
Single-Sided 80° Rhombic
Insert with a Strong Cutting IC
Edge for Extra Rough Turning
RE L S

Dimensions Tough 1 Hard Recommended Machining Data

IC8250 IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
CNMM 190624-H4P 19.34 19.05 6.35 2.40 • • 4.00-12.00 0.50-1.10
CNMM 250924-H4P 25.79 25.40 9.52 2.40 • • 5.00-15.00 0.55-1.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L (101) • DCBNR/L (26) • DCLNR/L (25) • MCLNR/L (21) • PCBNR/L (22) • PCLNR/L (20)

153
