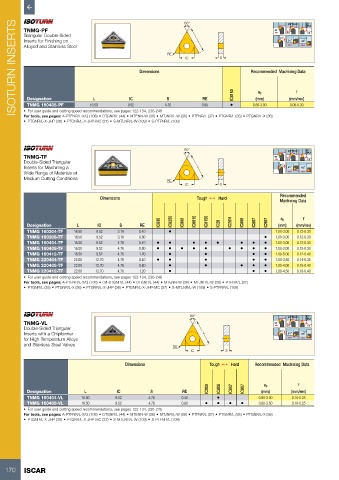

Page 172 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS TNMG-PF Dimensions RE 60° L S Recommended Machining Data 55° 60 º
22°MAX
MAX
91 º
93 º
Triangular Double-Sided
91 º
91 º
Inserts for Finishing on
95 º
Alloyed and Stainless Steel
IC

f
ap
S
L
IC
Designation
(mm)
RE
16.50
TNMG 160408-PF
4.76
9.52
0.08-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)
• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109) 0.80 • IC8150 0.80-3.00 (mm/rev)

60° 22°MAX 55°
TNMG-TF 91 º 93 º MAX
60 º
Double-Sided Triangular 91 º
Inserts for Machining a L 91 º 95 º
Wide Range of Materials at
Medium Cutting Conditions RE
IC S
Dimensions Tough 1 Hard Recommended
Machining Data
IC830 IC8250 IC908 IC6015 IC8150 IC20N IC806 IC807 IC907 ap f
Designation L IC S RE IC20 (mm) (mm/rev)
TNMG 160304-TF 16.50 9.52 3.18 0.40 • 1.00-3.00 0.12-0.30
TNMG 160308-TF 16.50 9.52 3.18 0.80 • 1.00-3.00 0.12-0.30
TNMG 160404-TF 16.50 9.52 4.76 0.40 • • • • • • • • 1.00-3.00 0.12-0.30
TNMG 160408-TF 16.50 9.52 4.76 0.80 • • • • • • • • • 1.00-3.00 0.12-0.30
TNMG 160412-TF 16.50 9.52 4.76 1.20 • • • • 1.00-5.00 0.12-0.40
TNMG 220404-TF 22.00 12.70 4.76 0.40 • • • • • 1.00-3.50 0.14-0.35
TNMG 220408-TF 22.00 12.70 4.76 0.80 • • • • • 1.00-4.00 0.15-0.40
TNMG 220412-TF 22.00 12.70 4.76 1.20 • • • 1.00-4.50 0.18-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)
• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

60° 22°MAX 55°
TNMG-VL 91 º 93 º MAX
60 º
Double-Sided Triangular 91 º
Inserts with a Chipformer L 91 º 95 º
for High Temperature Alloys
and Stainless Steel Valves RE
IC S

Dimensions Tough 1 Hard Recommended Machining Data

IC908 IC806 IC807 IC907 ap f
Designation L IC S RE (mm) (mm/rev)
TNMG 160404-VL 16.50 9.52 4.76 0.40 • 0.80-3.50 0.10-0.25
TNMG 160408-VL 16.50 9.52 4.76 0.80 • • • • 0.80-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)
• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

170 ISCAR
