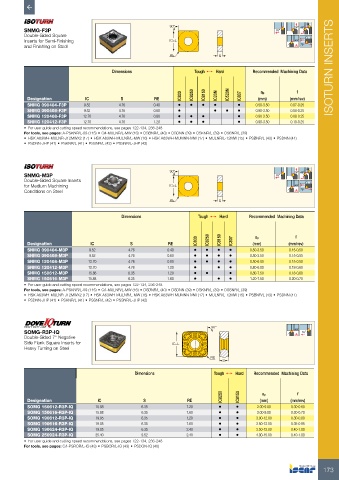

Page 175 - ISCAR(TURNING-CATALOG-42-2022)

45 º
SNMG-F3P 90° 75 º 75 º 45 º
Double-Sided Square
Inserts for Semi-Finishing IC=L 45°
and Finishing on Steel 75º
RE S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC830 IC8250 IC8150 IC20N IC520N IC807 ap f
Designation IC S RE (mm) (mm/rev)
SNMG 090404-F3P 9.52 4.76 0.40 • • • • • 0.50-3.50 0.07-0.25
SNMG 090408-F3P 9.52 4.76 0.80 • • • • 0.90-3.50 0.08-0.25
SNMG 120408-F3P 12.70 4.76 0.80 • • • • 0.90-3.50 0.08-0.25
SNMG 120412-F3P 12.70 4.76 1.20 • • • • 0.90-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)
• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41)
• PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

45 º

SNMG-M3P 90° 75 º 75 º 45 º
Double-Sided Square Inserts
for Medium Machining IC=L 45°
Conditions on Steel 75º
RE S

Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC8250 IC8150 IC807 ap f
Designation IC S RE (mm) (mm/rev)
SNMG 090404-M3P 9.52 4.76 0.40 • • • • 0.50-3.50 0.15-0.50
SNMG 090408-M3P 9.52 4.76 0.80 • • • • 0.50-3.50 0.15-0.55
SNMG 120408-M3P 12.70 4.76 0.80 • • • • 0.50-6.00 0.15-0.50
SNMG 120412-M3P 12.70 4.76 1.20 • • • 0.80-6.00 0.18-0.60
SNMG 150612-M3P 15.88 6.35 1.20 • • • 0.80-7.50 0.18-0.60
SNMG 150616-M3P 15.88 6.35 1.60 • • • 1.20-7.50 0.20-0.70
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)
• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41)
• PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

90°
SOMG-R3P-IQ 45° 75 º
Double-Sided 7° Negative
Side Flank Square Inserts for IC=L
Heavy Turning on Steel
RE
S
Dimensions Tough 1 Hard Recommended Machining Data

IC8250 IC8150 ap f
Designation IC S RE (mm) (mm/rev)
SOMG 150612-R3P-IQ 15.88 6.35 1.20 • • 2.00-9.00 0.30-0.60
SOMG 150616-R3P-IQ 15.88 6.35 1.60 • • 2.00-9.00 0.30-0.70
SOMG 190612-R3P-IQ 19.05 6.35 1.20 • • 3.00-12.00 0.30-0.80
SOMG 190616-R3P-IQ 19.05 6.35 1.60 • • 3.50-12.00 0.35-0.85
SOMG 190624-R3P-IQ 19.05 6.35 2.40 • • 3.50-12.00 0.40-1.00
SOMG 250924-R3P-IQ 25.40 9.52 2.40 • • 4.00-15.00 0.40-1.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-PSROR/L-IQ (43) • PSBOR/L-IQ (43) • PSDON-IQ (40)

173
