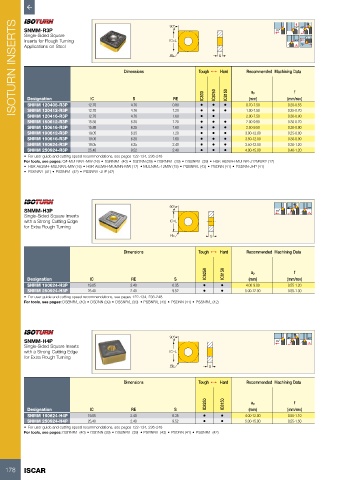

ISOTURN INSERTS SNMM-R3P Dimensions 90° Tough 1 Hard Recommended Machining Data 75º 45 º
75 º 45 º
75 º
Single-Sided Square
IC=L
Inserts for Rough Turning
45°
Applications on Steel
RE
S

f
ap
(mm)
IC
Designation
S
RE
0.20-0.55
SNMM 120408-R3P
•
•
•
12.70
SNMM 120412-R3P
1.00-7.50
4.76
0.25-0.70
1.20
•
•
4.76
2.00-7.50
SNMM 120416-R3P
1.60
0.30-0.90
12.70
•
•
•
15.88
0.30-0.70
SNMM 150612-R3P 12.70 4.76 0.80 • IC830 • IC8250 • IC8150 0.70-7.50 (mm/rev)
1.20
2.00-9.50
6.35
SNMM 150616-R3P 15.88 6.35 1.60 • • • 2.50-9.50 0.30-0.90
SNMM 190612-R3P 19.05 6.35 1.20 • • • 3.00-12.00 0.25-0.80
SNMM 190616-R3P 19.05 6.35 1.60 • • • 3.50-12.00 0.30-0.90
SNMM 190624-R3P 19.05 6.35 2.40 • • • 3.50-12.00 0.30-1.20
SNMM 250924-R3P 25.40 9.52 2.40 • • • 4.00-15.00 0.40-1.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)
• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)
• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

45 º
SNMM-H3P 90° 75 º 45 º 45°
Single-Sided Square Inserts
with a Strong Cutting Edge IC=L
for Extra Rough Turning
RE S
Dimensions Tough 1 Hard Recommended Machining Data
IC8250 IC8150 ap f
Designation IC RE S (mm) (mm/rev)
SNMM 190624-H3P 19.05 2.40 6.35 • • 4.00-9.00 0.55-1.20
SNMM 250924-H3P 25.40 2.40 9.52 • • 5.00-12.00 0.55-1.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

45 º
SNMM-H4P 90° 75 º 45 º 45°
Single-Sided Square Inserts
with a Strong Cutting Edge IC=L
for Extra Rough Turning
RE S
Dimensions Tough 1 Hard Recommended Machining Data
IC8250 IC8150 ap f
Designation IC RE S (mm) (mm/rev)
SNMM 190624-H4P 19.05 2.40 6.35 • • 4.00-12.00 0.50-1.10
SNMM 250924-H4P 25.40 2.40 9.52 • • 5.00-15.00 0.55-1.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)
