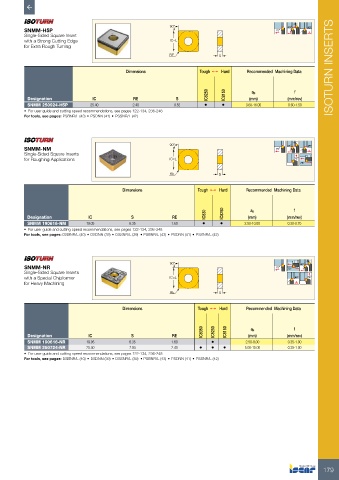

Page 181 - ISCAR(TURNING-CATALOG-42-2022)

45 º
SNMM-H5P 90° 75 º 45 º 45°
Single-Sided Square Insert
with a Strong Cutting Edge IC=L
for Extra Rough Turning
RE S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC8250 IC8150 ap f
Designation IC RE S (mm) (mm/rev)
SNMM 250924-H5P 25.40 2.40 9.52 • • 3.60-16.00 0.60-1.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

45 º
SNMM-NM 90° 75 º 45 º 45°
Single-Sided Square Inserts
for Roughing Applications IC=L 75 º
75º

RE S

Dimensions Tough 1 Hard Recommended Machining Data

f
ap
Designation IC S RE IC830 IC8250 (mm) (mm/rev)
SNMM 190616-NM 19.05 6.35 1.60 • • 2.50-10.00 0.30-0.70
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

45 º
SNMM-NR 90° 75 º 75º 45 º
Single-Sided Square Inserts
with a Special Chipformer IC=L 45° 75 º
for Heavy Machining
RE S

Dimensions Tough 1 Hard Recommended Machining Data

IC8350 IC8250 IC8150 ap f
Designation IC S RE (mm) (mm/rev)
SNMM 190616-NR 19.05 6.35 1.60 • 2.50-8.00 0.35-1.00
SNMM 250724-NR 25.40 7.94 2.40 • • • 5.00-15.00 0.35-1.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

179
