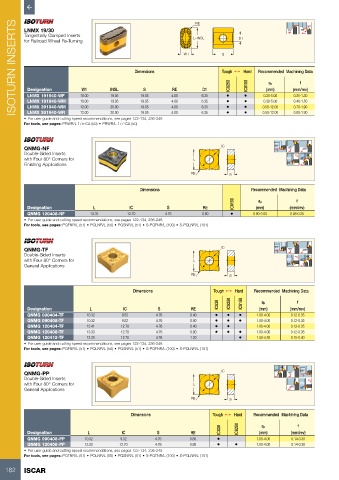

Page 184 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS LNMX 19/30 W1 INSL Dimensions RE W1 L=INSL D1 S Tough 1 Hard Recommended Machining Data
RE
91°
75°
93°
Tangentially Clamped Inserts
D1
for Railroad Wheel Re-Turning

IC8250
f
IC8150
ap
S
(mm)
(mm/rev)
Designation
0.30-5.00
LNMX 191940-WF
19.05
10.00
19.05
•
•
4.00
0.30-5.00
0.40-1.50
10.00
6.35
19.05
19.05
LNMX 191940-WM
•
•
19.05
30.00
12.00
0.70-1.90
6.35
4.00
LNMX 301940-WM
•
•
LNMX 301940-WR
6.35
0.50-12.00
19.05
12.00
0.80-1.90
30.00
4.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 4.00 6.35 • • 0.50-12.00 0.25-1.30
For tools, see pages: PRWR/L 175-CA (50) • PRWR/L 177-CA (50)

QNMG-NF IC 95º 95° 95°
Double-Sided Inserts 45 º
with Four 80° Corners for L 45 º
Finishing Applications 95 º
RE S
Dimensions Recommended Machining Data
IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
QNMG 120408-NF 13.33 12.70 4.76 0.80 • 0.80-3.00 0.08-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: PQFNR/L (51) • PQLNR/L (50) • PQSNR/L (51) • S-PQFNR/L (100) • S-PQLNR/L (101)

QNMG-TF IC 95º 95° 95°
Double-Sided Inserts 45 º
with Four 80° Corners for L 45 º
General Applications 95 º
RE S
Dimensions Tough 1 Hard Recommended Machining Data
IC830 IC8250 IC8150 ap f
Designation L IC S RE (mm) (mm/rev)
QNMG 090404-TF 10.32 9.52 4.76 0.40 • • • 1.00-4.00 0.12-0.35
QNMG 090408-TF 10.32 9.52 4.76 0.80 • • • 1.00-4.00 0.12-0.35
QNMG 120404-TF 13.41 12.70 4.76 0.40 • • 1.00-4.00 0.12-0.35
QNMG 120408-TF 13.33 12.70 4.76 0.80 • • • 1.00-4.00 0.12-0.35
QNMG 120412-TF 13.25 12.70 4.76 1.20 • 1.50-4.50 0.15-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: PQFNR/L (51) • PQLNR/L (50) • PQSNR/L (51) • S-PQFNR/L (100) • S-PQLNR/L (101)

45 º
QNMG-PP IC 45 º 95° 95º
Double-Sided Inserts
with Four 80° Corners for L 95°
General Applications 95 º
RE S
Dimensions Tough 1 Hard Recommended Machining Data
IC830 IC8250 ap f
Designation L IC S RE (mm) (mm/rev)
QNMG 090408-PP 10.32 9.52 4.76 0.80 • 1.00-4.00 0.14-0.30
QNMG 120408-PP 13.33 12.70 4.76 0.80 • • 1.00-4.00 0.14-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: PQFNR/L (51) • PQLNR/L (50) • PQSNR/L (51) • S-PQFNR/L (100) • S-PQLNR/L (101)
