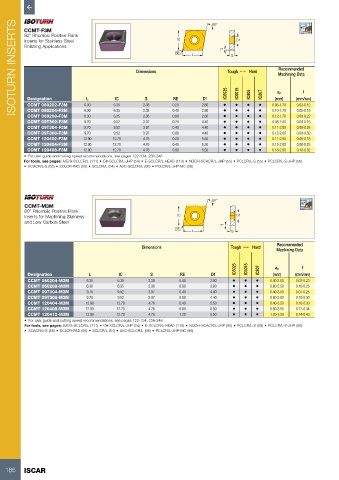

Page 188 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS CCMT-F3M Dimensions RE L 80° 7° IC6025 Tough 1 Hard IC807 ap Recommended
95 º
80° Rhombic Positive Flank
IC
D1
Inserts for Stainless Steel
Finishing Applications
S

Machining Data

IC6015
f
IC806
S
Designation
RE
(mm)
L
IC
D1
0.03-0.12
CCMT 060202-F3M
•
•
•
•
0.10-1.70
6.30
0.40
2.80
6.35
2.38
CCMT 060204-F3M
0.05-0.18
•
•
•
•
CCMT 060208-F3M
2.38
0.80
2.80
0.08-0.22
0.12-1.70
6.35
6.30
•
•
•
•
0.08-2.00
0.04-0.16
4.40
9.70
CCMT 09T302-F3M 6.30 6.35 2.38 0.20 2.80 • • • • 0.06-1.70 (mm/rev)
3.97
0.20
9.52
CCMT 09T304-F3M 9.70 9.52 3.97 0.40 4.40 • • • • 0.11-2.00 0.06-0.25
CCMT 09T308-F3M 9.70 9.52 3.97 0.80 4.40 • • • • 0.15-2.00 0.08-0.32
CCMT 120402-F3M 12.90 12.70 4.76 0.20 5.50 • • • • 0.11-2.00 0.06-0.18
CCMT 120404-F3M 12.90 12.70 4.76 0.40 5.50 • • • • 0.15-2.00 0.08-0.25
CCMT 120408-F3M 12.90 12.70 4.76 0.80 5.50 • • • • 0.18-2.00 0.10-0.32
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

80°
CCMT-M3M 95 º
80° Rhombic Positive Flank
Inserts for Machining Stainless IC D1
and Low Carbon Steel
7°
RE L S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025 IC6015 IC807 ap f
Designation L IC S RE D1 (mm) (mm/rev)
CCMT 060204-M3M 6.30 6.35 2.38 0.40 2.80 • • • 0.40-2.50 0.07-0.23
CCMT 060208-M3M 6.30 6.35 2.38 0.80 2.80 • • • 0.80-2.50 0.10-0.25
CCMT 09T304-M3M 9.70 9.52 3.97 0.40 4.40 • • • 0.40-3.00 0.07-0.25
CCMT 09T308-M3M 9.70 9.52 3.97 0.80 4.40 • • • 0.80-3.00 0.10-0.30
CCMT 120404-M3M 12.90 12.70 4.76 0.40 5.50 • • • 0.40-3.50 0.10-0.30
CCMT 120408-M3M 12.90 12.70 4.76 0.80 5.50 • • • 0.80-3.50 0.12-0.34
CCMT 120412-M3M 12.90 12.70 4.76 1.20 5.50 • • • 1.20-3.50 0.14-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

186 ISCAR
