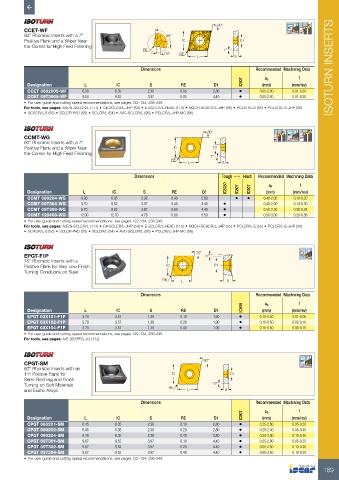

80° 95 º
CCET-WF 95 º 95 º
80° Rhombic Inserts with a 7° 86°
Positive Flank and a Wiper Near IC D1
the Corner for High Feed Finishing
RE 7°
0.3 RE
L S
Dimensions Recommended Machining Data ISOTURN INSERTS
f
ap
Designation L IC S RE D1 IC907 (mm) (mm/rev)
CCET 0602005-WF 6.30 6.35 2.38 0.05 2.80 • 0.05-2.00 0.01-0.20
CCET 09T3005-WF 9.50 9.52 3.97 0.05 4.40 • 0.05-2.00 0.01-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

80° 95 º 99°
CCMT-WG 95 º 95 º 91°
80° Rhombic Inserts with a 7°
Positive Flank and a Wiper Near IC D1
the Corner for High Feed Finishing
7°
RE
L S
Dimensions Tough 1 Hard Recommended Machining Data
IC8250 IC807 IC907 ap f
Designation L IC S RE D1 (mm) (mm/rev)
CCMT 060204-WG 6.30 6.35 2.38 0.40 2.80 • • 0.40-2.00 0.10-0.35
CCMT 09T304-WG 9.70 9.52 3.97 0.40 4.40 • 0.40-2.00 0.14-0.30
CCMT 09T308-WG 9.70 9.52 3.97 0.80 4.40 • 0.50-2.50 0.20-0.38
CCMT 120408-WG 12.90 12.70 4.76 0.80 5.50 • 0.50-3.00 0.20-0.36
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

EPGT-F1P 75˚ 11˚ 100º
75° Rhombic Inserts with a
Positive Flank for Very Low Finish IC D1
Turning Conditions on Steel
RE L S

Dimensions Recommended Machining Data
IC908 ap f
Designation L IC S RE D1 (mm) (mm/rev)
EPGT 03X101-F1P 3.70 3.57 1.39 0.10 1.90 • 0.10-0.50 0.01-0.05
EPGT 03X102-F1P 3.70 3.57 1.39 0.20 1.90 • 0.10-0.50 0.02-0.10
EPGT 03X104-F1P 3.70 3.57 1.39 0.40 1.90 • 0.10-0.50 0.05-0.15
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E-SEXPR/L-03 (112)

CPGT-SM 80° 95 º
80° Rhombic Inserts with an
11° Positive Flank for IC D1
Semi-Finishing and Finish
Turning on Soft Materials RE 11°
and Exotic Alloys L S

Dimensions Recommended Machining Data
IC907 ap f
Designation L IC S RE D1 (mm) (mm/rev)
CPGT 060201-SM 6.45 6.35 2.38 0.10 2.80 • 0.25-2.00 0.05-0.20
CPGT 060202-SM 6.45 6.35 2.38 0.20 2.80 • 0.25-2.00 0.05-0.30
CPGT 060204-SM 6.45 6.35 2.38 0.40 2.80 • 0.50-3.00 0.10-0.35
CPGT 09T301-SM 9.67 9.52 3.97 0.10 4.40 • 0.25-2.00 0.05-0.25
CPGT 09T302-SM 9.67 9.52 3.97 0.20 4.40 • 0.50-2.50 0.10-0.30
CPGT 09T304-SM 9.67 9.52 3.97 0.40 4.40 • 0.60-3.50 0.10-0.35
