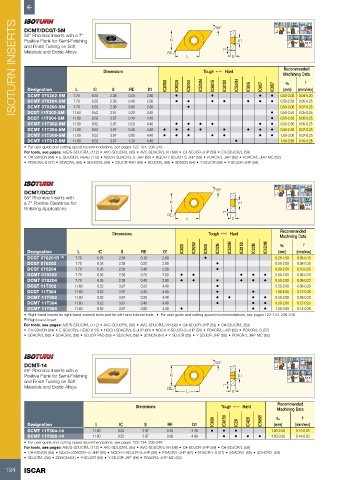

Page 196 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS DCMT/DCGT-SM L IC Dimensions RE D1 IC8350 RE IC IC6025 L IC8250 IC530N Tough 1 Hard S D1 IC806 IC807 IC907 107.5° (mm) 29° 93 º (mm/rev)
MAX
93º-95º
55°
50º
91°
MAX
55° Rhombic Inserts with a 7°
27°
60°
MAX
MAX
Positive Flank for Semi-Finishing
62.5 º
and Finish Turning on Soft
7°
Materials and Exotic Alloys
Recommended
Machining Data
IC520N
IC8150
f
IC6015
ap
S
Designation
7.70
DCMT 070202-SM
•
•
•
•
0.40
2.80
7.70
0.50-2.50
0.05-0.25
DCMT 070204-SM
2.38
6.35
•
6.35
2.38
DCMT 070208-SM
7.70
0.50-3.00
0.07-0.25
0.80
2.80
•
DCGT 11T302-SM
3.97
0.50-2.50
4.40
9.52
0.05-0.25
0.20
•
DCGT 11T304-SM 11.60 6.35 2.38 0.20 2.80 • • • • • • • 0.50-2.00 0.04-0.20
3.97
4.40
0.40
0.05-0.25
9.52
0.50-2.50
11.60
DCMT 11T302-SM 11.60 9.52 3.97 0.20 4.40 • • • • • • 0.50-2.50 0.05-0.25
DCMT 11T304-SM 11.60 9.52 3.97 0.40 4.40 • • • • • • • • 0.50-2.50 0.07-0.25
DCMT 11T308-SM 11.60 9.52 3.97 0.80 4.40 • • • • • • • 1.00-3.00 0.07-0.25
DCMT 11T312-SM 11.60 9.52 3.97 1.20 4.40 • 1.00-3.50 0.10-0.28
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)
• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-JHP-MC (62)
• PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58)

107.5° 29°
DCMT/DCGT 55° 91° MAX 93º-95º 50º
MAX
55° Rhombic Inserts with 27° 60°
MAX
a 7° Positive Clearance for IC D1 MAX 62.5 º
93 º
Finishing Applications
RE 7°
L S
Recommended
Dimensions Tough 1 Hard Machining Data
IC830 IC8250 IC908 IC30N IC530N IC8150 IC20N IC520N ap f
Designation L IC S RE D1 (mm) (mm/rev)
DCGT 070201R (1) 7.70 6.35 2.38 0.10 2.80 • 0.25-1.50 0.05-0.15
DCGT 070202 7.70 6.35 2.38 0.20 2.80 • 0.50-2.00 0.08-0.20
DCGT 070204 7.70 6.35 2.38 0.40 2.80 • 0.80-2.50 0.10-0.25
DCMT 070202 7.70 6.35 2.38 0.20 2.80 • • • • • 0.50-2.00 0.08-0.20
DCMT 070204 7.70 6.35 2.38 0.40 2.80 • • • • • • 0.50-2.00 0.08-0.22
DCGT 11T302 11.60 9.52 3.97 0.20 4.40 • 0.50-2.00 0.08-0.20
DCGT 11T304 11.60 9.52 3.97 0.40 4.40 • • 1.00-2.50 0.12-0.25
DCMT 11T302 11.60 9.52 3.97 0.20 4.40 • • • • 0.50-2.00 0.08-0.20
DCMT 11T304 11.60 9.52 3.97 0.40 4.40 • • • 0.50-2.00 0.12-0.25
DCMT 11T308 11.60 9.52 3.97 0.80 4.40 • • • 1.50-3.00 0.14-0.29
• Right-hand inserts for right-hand external tools and for left-hand internal tools • For user guide and cutting speed recommendations, see pages 122-134, 236-248
(1) Right-hand insert
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)
• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)
• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

107.5° 29°
DCMT-14 55° 91° MAX 93º-95º 50º
MAX
55° Rhombic Inserts with a 27° 60°
MAX
Positive Flank for Semi-Finishing IC D1 MAX 62.5 º
93 º
and Finish Turning on Soft
Materials and Exotic Alloys RE 7°
L S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC830 IC8150 IC20 IC428 IC5005 ap f
Designation L IC S RE D1 (mm) (mm/rev)
DCMT 11T304-14 11.60 9.52 3.97 0.40 4.40 • • • 1.00-2.50 0.14-0.25
DCMT 11T308-14 11.60 9.52 3.97 0.80 4.40 • • • • 1.50-3.00 0.14-0.29
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)
• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59)
• SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)
194 ISCAR
