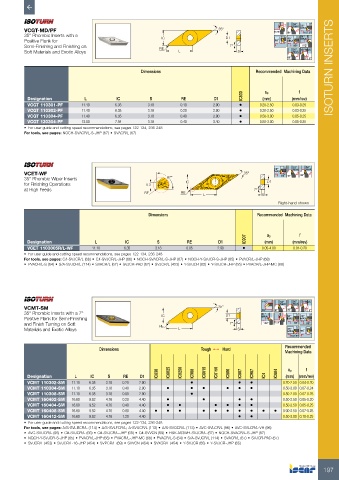

Page 199 - ISCAR(TURNING-CATALOG-42-2022)

52°
MAX
VCGT-MD/PF 35° 117.5° 91° MAX 35°
35° Rhombic Inserts with a IC D1 31° 107.5º
Positive Flank for 95 º 48° MAX
MAX
Semi-Finishing and Finishing on RE 7° 95º 112°
Soft Materials and Exotic Alloys L S 50° 70°MAX
MAX
93° 72.5 º
Dimensions Recommended Machining Data ISOTURN INSERTS

IC830 ap f
Designation L IC S RE D1 (mm) (mm/rev)
VCGT 110301-PF 11.10 6.35 3.18 0.10 2.90 • 0.20-2.50 0.03-0.25
VCGT 110302-PF 11.40 6.35 3.18 0.20 2.90 • 0.30-2.50 0.03-0.25
VCGT 110304-PF 11.40 6.35 3.18 0.40 2.90 • 0.50-3.00 0.05-0.25
VCGT 130304-PF 13.00 7.94 3.18 0.40 3.40 • 0.50-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: NQCH-SVACR/L-S-JHP (67) • SVACR/L (67)

30° 52° 50°
VCET-WF 35° MAX MAX 93° MAX
35° Rhombic Wiper Inserts 87° WF 93 º 91°
for Finishing Operations 0.3 IC R D1
at High Feeds 7°
RE RE
L S
Right-hand shown
Dimensions Recommended Machining Data

IC907 ap f
Designation L IC S RE D1 (mm) (mm/rev)
VCET 1103005R/L-WF 11.10 6.35 3.18 0.05 2.90 • 0.05-4.00 0.01-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • NQCH-SVACR/L-S-JHP (67) • NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68)
• PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67) • SVJCR/L (453) • Y-SVJCR (65) • Y-SVJCR-JHP (65) • PVACR/L-JHP-MC (68)

142º 52° 50° 70°MAX

VCMT-SM 35° 93º 91° MAX 93° MAX 72.5 º
35° Rhombic Inserts with a 7° IC D1 31°
Positive Flank for Semi-Finishing MAX 30° 48°
MAX
MAX
and Finish Turning on Soft RE 7° 112° 117.5° 93 º 95º
Materials and Exotic Alloys L S 35° 95 º
MAX
107.5º
Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC6025 IC8250 IC908 IC6015 IC8150 IC806 IC807 IC907 IC804 ap f
Designation L IC S RE D1 IC4 (mm) (mm/rev)
VCMT 110302-SM 11.10 6.35 3.18 0.20 2.90 • • • 0.20-2.50 0.04-0.20
VCMT 110304-SM 11.10 6.35 3.18 0.40 2.90 • • • • • • 0.50-3.00 0.07-0.24
VCMT 110308-SM 11.10 6.35 3.18 0.80 2.90 • 0.50-2.00 0.07-0.25
VCMT 160402-SM 16.60 9.52 4.76 0.20 4.40 • • • • 0.50-2.50 0.05-0.20
VCMT 160404-SM 16.60 9.52 4.76 0.40 4.40 • • • • • • 0.50-2.50 0.05-0.25
VCMT 160408-SM 16.60 9.52 4.76 0.80 4.40 • • • • • • • • • • 0.90-2.50 0.07-0.25
VCMT 160412-SM 16.60 9.52 4.76 1.20 4.40 • • 0.50-3.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L (96) • AVC-SVLCR/L-VH (98)
• AVC-SVUCR/L (95) • C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • NQCH-SVACR/L-S-JHP (67)
• NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68) • PVACR/L-JHP-MC (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67)
• SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVPCR/L (69) • SVVCN (454) • SVXCR/L (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65)

197
