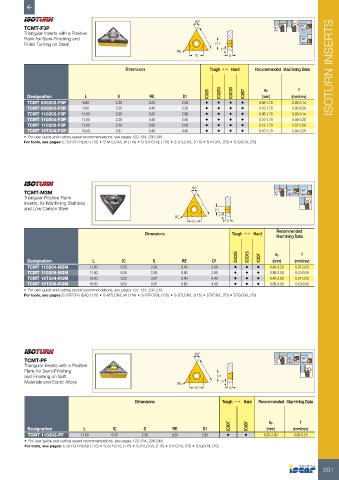

Page 203 - ISCAR(TURNING-CATALOG-42-2022)

60° 91 º

TCMT-F3P 91 º 91 º
Triangular Inserts with a Positive
Flank for Semi-Finishing and L 95 º
Finish Turning on Steel D1
RE 7°
IC S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC830 IC8250 IC8150 IC807 ap f
Designation L S RE D1 (mm) (mm/rev)
TCMT 090202-F3P 9.60 2.38 0.20 2.50 • • • • 0.06-1.70 0.03-0.14
TCMT 090204-F3P 9.60 2.38 0.40 2.50 • • • • 0.10-1.70 0.05-0.20
TCMT 110202-F3P 11.00 2.38 0.20 2.80 • • • • 0.06-1.70 0.03-0.14
TCMT 110204-F3P 11.00 2.38 0.40 2.80 • • • • 0.10-1.70 0.05-0.20
TCMT 110208-F3P 11.00 2.38 0.80 2.80 • • • • 0.13-1.70 0.07-0.28
TCMT 16T304-F3P 16.50 3.97 0.40 4.40 • • • • 0.10-1.70 0.05-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: E-STFCR-HEAD (115) • S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

60°

TCMT-M3M 91 º 91 º 95 º
Triangular Positive Flank 91 º
Inserts, for Machining Stainless L
and Low Carbon Steel D1
RE 7°
IC S
Recommended
Dimensions Tough 1 Hard Machining Data

IC6025 IC6015 IC807 ap f
Designation L IC S RE D1 (mm) (mm/rev)
TCMT 110204-M3M 11.00 6.35 2.38 0.40 2.80 • • • 0.40-2.50 0.07-0.23
TCMT 110208-M3M 11.00 6.35 2.38 0.80 2.80 • • • 0.80-2.50 0.10-0.25
TCMT 16T304-M3M 16.50 9.52 3.97 0.40 4.40 • • • 0.40-3.00 0.07-0.25
TCMT 16T308-M3M 16.50 9.52 3.97 0.80 4.40 • • • 0.80-3.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: E-STFCR-HEAD (115) • S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

60°
TCMT-PF 91 º 91 º 95 º
Triangular Inserts with a Positive 91 º
Flank for Semi-Finishing L
and Finishing on Soft D1
Materials and Exotic Alloys RE 7°
IC S

Dimensions Tough 1 Hard Recommended Machining Data

f
ap
Designation L IC S RE D1 IC807 IC907 (mm) (mm/rev)
TCMT 110202-PF 11.00 6.35 2.38 0.20 2.85 • • 0.20-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: E-STFCR-HEAD (115) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

201
