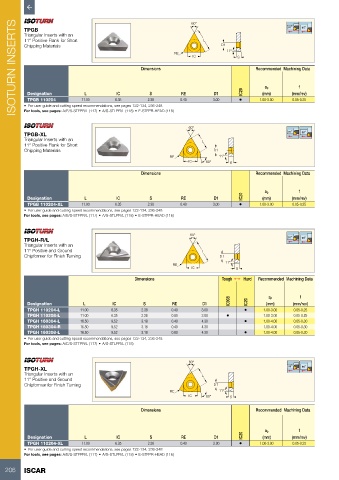

Page 208 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS TPGB L IC Dimensions RE RE 60° L D1 D1 11° S IC20 Recommended Machining Data
91 º
95 º
Triangular Inserts with an
11° Positive Flank for Short
Chipping Materials
IC

f
ap
(mm)
Designation
(mm/rev)
S
2.38
TPGB 110204
11.00
6.35
For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 0.40 3.00 • 1.00-3.00 0.05-0.25
60°
TPGB-XL 91 º 95 º
Triangular Inserts with an L
11° Positive Flank for Short
Chipping Materials D1
RE 11°
IC 80° S
Dimensions Recommended Machining Data

ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
TPGB 110204-XL 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)

60°
TPGH-R/L 91 º 95 º
Triangular Inserts with an
11° Positive and Ground L
Chipformer for Finish Turning D1
11°
RE
IC S
Dimensions Tough 1 Hard Recommended Machining Data

IC908 ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
TPGH 110204-L 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25
TPGH 110208-L 11.00 6.35 2.38 0.80 3.00 • 1.00-3.00 0.05-0.25
TPGH 160304-L 16.50 9.52 3.18 0.40 4.30 • 1.00-4.00 0.05-0.30
TPGH 160304-R 16.50 9.52 3.18 0.40 4.30 1.00-4.00 0.05-0.30
TPGH 160308-L 16.50 9.52 3.18 0.80 4.30 • 1.00-4.00 0.05-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118)

60°
TPGH-XL 91 º 95 º
Triangular Inserts with an L
11° Positive and Ground
Chipformer for Finish Turning D1
RE 11°
IC 80° S

Dimensions Recommended Machining Data

ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
TPGH 110204-XL 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)

206 ISCAR
