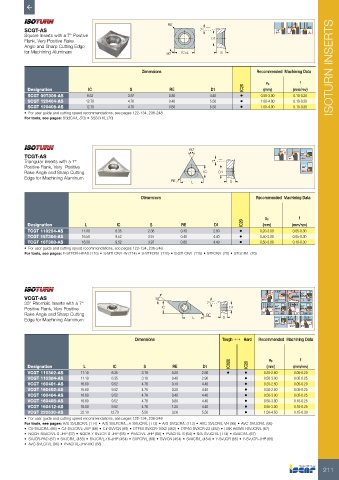

Page 213 - ISCAR(TURNING-CATALOG-42-2022)
P. 213
RE 45 º
SCGT-AS 7° 75 º 45 º 45°
Square Inserts with a 7° Positive D1
Flank, Very Positive Rake
Angle and Sharp Cutting Edge
for Machining Aluminum 90˚ IC=L S
Dimensions Recommended Machining Data ISOTURN INSERTS
ap f
Designation IC S RE D1 IC20 (mm) (mm/rev)
SCGT 09T308-AS 9.52 3.97 0.80 4.40 • 0.50-3.00 0.10-0.30
SCGT 120404-AS 12.70 4.76 0.40 5.50 • 1.00-4.00 0.10-0.30
SCGT 120408-AS 12.70 4.76 0.80 5.50 • 1.00-4.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: SSBCR/L (70) • SSSCR/L (70)
60˚ 91 º
TCGT-AS 91 º 91 º
Triangular Inserts with a 7° 7°
Positive Flank, Very Positive 95 º
Rake Angle and Sharp Cutting IC D1
Edge for Machining Aluminum
RE L S
Dimensions Recommended Machining Data
ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
TCGT 110204-AS 11.00 6.35 2.38 0.40 2.80 • 0.20-3.00 0.05-0.30
TCGT 16T304-AS 16.50 9.52 3.97 0.40 4.40 • 0.50-3.00 0.05-0.30
TCGT 16T308-AS 16.50 9.52 3.97 0.80 4.40 • 0.50-3.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: E-STFCR-HEAD (115) • S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)
142º
MAX
VCGT-AS 35˚ 117.5° 93º 30° 93 º
35° Rhombic Inserts with a 7° 7° 50° 70°MAX
Positive Flank, Very Positive IC D1 MAX 48° 35°
MAX
MAX
Rake Angle and Sharp Cutting RE S 93° 95º 31° 72.5 º 107.5º
Edge for Machining Aluminum L 95 º MAX 52°
MAX
112° 91°
Dimensions Tough 1 Hard Recommended Machining Data
IC920 ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
VCGT 110302-AS 11.10 6.35 3.18 0.20 2.90 • • 0.20-2.50 0.05-0.20
VCGT 110304-AS 11.10 6.35 3.18 0.40 2.90 • 0.50-3.00 0.05-0.25
VCGT 160401-AS 16.60 9.52 4.76 0.10 4.40 • 0.20-2.50 0.05-0.20
VCGT 160402-AS 16.60 9.52 4.76 0.20 4.40 • 0.50-2.50 0.05-0.25
VCGT 160404-AS 16.60 9.52 4.76 0.40 4.40 • 0.50-3.00 0.05-0.25
VCGT 160408-AS 16.60 9.52 4.76 0.80 4.40 • 0.50-3.00 0.10-0.25
VCGT 160412-AS 16.60 9.52 4.76 1.20 4.40 • 0.50-3.00 0.10-0.25
VCGT 220530-AS 22.10 12.70 5.56 3.00 5.50 • 1.50-4.50 0.15-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • AVC-SVUCR/L (95)
• C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • DTF50 SVXCR-16X2 (452) • DTF50 SVXCR-22 (452) • HSK A63WH-SVJCR/L (67)
• NQCH-SVACR/L-S-JHP (67) • NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67)
• SVJCR-PAD (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVPCR/L (69) • SVVCN (454) • SVXCR/L (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65)
• AVC-SVLCR/L (96) • PVACR/L-JHP-MC (68)
