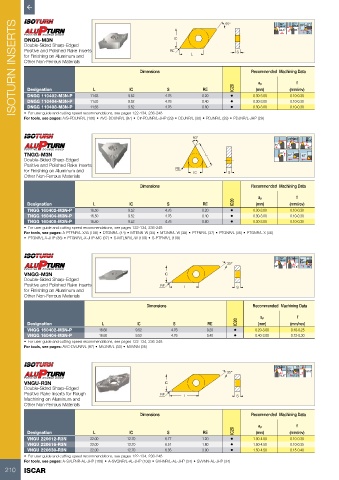

Page 212 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS DNGG-M3N L IC Dimensions S RE IC L RE 55° IC20 S Recommended Machining Data 50º MAX
27°
60°
MAX
93º-95º
MAX
62.5 º
93 º
Double-Sided Sharp-Edged
Positive and Polished Rake Inserts
for Finishing on Aluminum and
Other Non-Ferrous Materials

f
ap
Designation
(mm/rev)
(mm)
•
4.76
0.20
0.30-3.00
DNGG 110402-M3N-P
11.63
9.52
•
DNGG 110404-M3N-P
4.76
9.52
11.63
0.30-3.00
0.40
0.10-0.30
•
9.52
0.30-3.00
0.10-0.30
11.63
DNGG 110408-M3N-P
0.80
4.76
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L (97) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • PDJNR/L (28) • PDJNR/L-JHP (29) 0.10-0.30

60° 22°MAX 55°
91 º 93 º MAX
60 º
TNGG-M3N L 91 º 91 º 95 º
Double-Sided Sharp-Edged
Positive and Polished Rake Inserts
for Finishing on Aluminum and RE IC S
Other Non-Ferrous Materials
Dimensions Recommended Machining Data
ap f
Designation L IC S RE IC20 (mm) (mm/rev)
TNGG 160402-M3N-P 16.50 9.52 4.76 0.20 • 0.30-3.00 0.10-0.30
TNGG 160404-M3N-P 16.50 9.52 4.76 0.40 • 0.30-3.00 0.10-0.30
TNGG 160408-M3N-P 16.50 9.52 4.76 0.80 • 0.30-3.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)
• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

50° 70°MAX 30°
35° 93° MAX 72.5 º MAX 93 º
VNGG-M3N IC
Double-Sided Sharp-Edged
Positive and Polished Rake Inserts RE L S
for Finishing on Aluminum and
Other Non-Ferrous Materials
Dimensions Recommended Machining Data
ap f
Designation L IC S RE IC20 (mm) (mm/rev)
VNGG 160402-M3N-P 16.60 9.52 4.76 0.20 • 0.20-3.00 0.10-0.25
VNGG 160404-M3N-P 16.60 9.52 4.76 0.40 • 0.40-3.00 0.12-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: AVC-DVUNR/L (97) • MVJNR/L (33) • MVVNN (35)

70°MAX
MAX
35° 35° 107.5 º
72.5 º 107.5º
VNGU-R3N IC
Double-Sided Sharp-Edged
Positive Rake Inserts for Rough RE L S
Machining on Aluminum and
Other Non-Ferrous Materials
Dimensions Recommended Machining Data
ap f
Designation L IC S RE IC20 (mm) (mm/rev)
VNGU 220612-R3N 22.00 12.70 6.77 1.20 • 1.00-4.50 0.10-0.30
VNGU 220616-R3N 22.00 12.70 6.51 1.60 • 1.50-4.50 0.10-0.35
VNGU 220630-R3N 22.00 12.70 6.35 3.00 • 1.50-4.50 0.15-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SVLFNR-AL-JHP (108) • A-SVQNR/L-AL-JHP (108) • SVHNR/L-AL-JHP (34) • SVVNN-AL-JHP (34)
210 ISCAR
