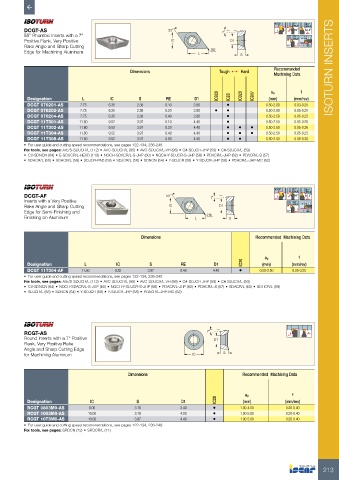

Page 215 - ISCAR(TURNING-CATALOG-42-2022)

107.5° 27° 60°
MAX
DCGT-AS 55˚ 7˚ MAX 62.5 º
93 º
55° Rhombic Inserts with a 7° 29°
Positive Flank, Very Positive IC D1 MAX 93º-95º
Rake Angle and Sharp Cutting 91° 50º MAX
Edge for Machining Aluminum L RE S

Dimensions Tough 1 Hard Recommended ISOTURN INSERTS
Machining Data

IC920 IC320 IC907 ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
DCGT 070201-AS 7.75 6.35 2.38 0.10 2.80 • 0.50-2.00 0.03-0.20
DCGT 070202-AS 7.75 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.05-0.20
DCGT 070204-AS 7.75 6.35 2.38 0.40 2.80 • 0.50-2.50 0.05-0.25
DCGT 11T301-AS 11.60 9.52 3.97 0.10 4.40 • 0.50-2.50 0.05-0.25
DCGT 11T302-AS 11.60 9.52 3.97 0.20 4.40 • • • 0.50-2.50 0.05-0.26
DCGT 11T304-AS 11.60 9.52 3.97 0.40 4.40 • • • 0.50-2.50 0.05-0.25
DCGT 11T308-AS 11.60 9.52 3.97 0.80 4.40 • • 0.80-3.00 0.08-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)
• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)
• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

107.5° 27° 60°
MAX
DCGT-AF 55˚ 7˚ MAX 62.5 º
93 º
Inserts with a Very Positive 29°
Rake Angle and Sharp Cutting IC D1 MAX 93º-95º
Edge for Semi-Finishing and 91° 50º MAX
Finishing on Aluminum L RE S

Dimensions Recommended Machining Data

ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
DCGT 11T304-AF 11.60 9.52 3.97 0.40 4.40 • 0.50-2.50 0.05-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)
• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59)
• SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

RCGT-AS 7˚
Round Inserts with a 7° Positive D1
Flank, Very Positive Rake
Angle and Sharp Cutting Edge
for Machining Aluminum IC S

Dimensions Recommended Machining Data

ap f
Designation IC S D1 IC20 (mm) (mm/rev)
RCGT 0803M0-AS 8.00 3.18 3.40 • 1.00-4.00 0.20-0.40
RCGT 1003M0-AS 10.00 3.18 4.00 • 1.00-5.00 0.20-0.40
RCGT 10T3M0-AS 10.00 3.97 4.40 • 1.00-5.00 0.20-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: SRDCN (72) • SRGCR/L (71)

213
