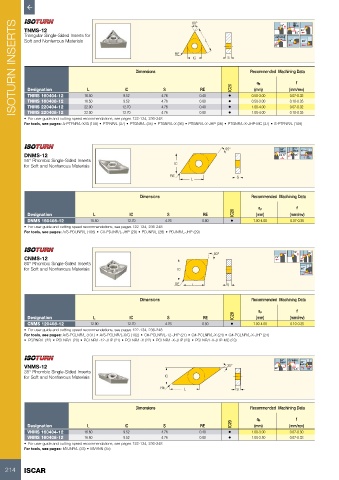

Page 216 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS TNMS-12 L IC Dimensions S RE 60° RE L S IC20 Recommended Machining Data
55°
91 º
MAX
91 º
60 º
Triangular Single-Sided Inserts for
22°MAX
91 º
Soft and Nonferrous Materials
95 º
93 º
IC
f
ap
Designation
(mm)
(mm/rev)
TNMS 160404-12
9.52
16.50
•
TNMS 160408-12
9.52
4.76
0.80
16.50
0.50-3.00
0.10-0.35
•
22.00
12.70
0.40
1.00-4.00
0.07-0.32
4.76
TNMS 220404-12
•
TNMS 220408-12
22.00
0.10-0.35
1.00-4.00
12.70
0.80
4.76
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 4.76 0.40 • 0.50-3.00 0.07-0.32
For tools, see pages: A-PTFNR/L-X/G (108) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-PTFNR/L (109)

55° 60° 27°
MAX
DNMS-12 62.5 º MAX 93º-95º 50º
93 º
55° Rhombic Single-Sided Inserts MAX
for Soft and Nonferrous Materials IC
RE S
L
Dimensions Recommended Machining Data
ap f
Designation L IC S RE IC20 (mm) (mm/rev)
DNMS 150408-12 15.50 12.70 4.76 0.80 • 1.00-4.00 0.07-0.35
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • C#-PDJNR/L-JHP (29) • PDJNR/L (28) • PDJNR/L-JHP (29)

75° 95 º
CNMS-12 80° 75 º 95 º
80° Rhombic Single-Sided Inserts
for Soft and Nonferrous Materials IC 95 º
RE L S
Dimensions Recommended Machining Data
ap f
Designation L IC S RE IC20 (mm) (mm/rev)
CNMS 120408-12 12.90 12.70 4.76 0.80 • 1.00-4.00 0.10-0.35
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)
• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

50° 70°MAX
MAX
VNMS-12 35° 93° MAX 72.5 º 30° 93 º
35° Rhombic Single-Sided Inserts
for Soft and Nonferrous Materials IC
RE L S

Dimensions Recommended Machining Data

ap f
Designation L IC S RE IC20 (mm) (mm/rev)
VNMS 160404-12 16.60 9.52 4.76 0.40 • 1.00-3.00 0.07-0.30
VNMS 160408-12 16.60 9.52 4.76 0.80 • 1.00-3.50 0.07-0.33
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: MVJNR/L (33) • MVVNN (35)

214 ISCAR
