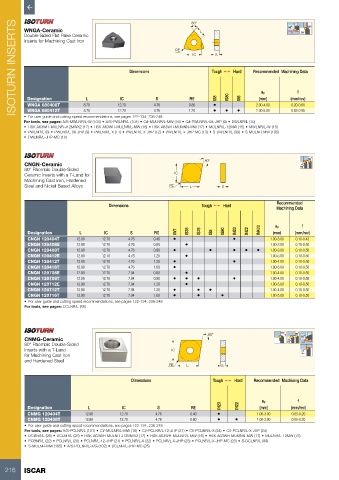

ISOTURN INSERTS WNGA-Ceramic Dimensions RE 80° L Tough 1 Hard Recommended Machining Data 95°
95 º
95°
Double-Sided Flat Rake Ceramic
Inserts for Machining Cast Iron

IC
S

f
ap
Designation
(mm)
IC
L
RE
S
WNGA 080408T
12.70
8.70
4.76
0.20-0.60
•
WNGA 080412T
8.70
12.70
4.76
1.20
2.00-5.00
0.03-0.95
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 0.80 • IS8 • IS80 • IS6 2.00-4.00 (mm/rev)
For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)
• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18)
• PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105)
• DWLNR/L-JHP-MC (10)

95 º
CNGN-Ceramic 80° 95 º
80° Rhombic Double-Sided
Ceramic Inserts with a T-Land for IC
Machining Cast Iron, Hardened
Steel and Nickel Based Alloys RE L S
Recommended
Dimensions Tough 1 Hard
Machining Data
f
ap
Designation L IC S RE IW7 IS35 IS25 IS8 IS80 IN23 IN22 IN420 (mm) (mm/rev)
CNGN 120404T 12.90 12.70 4.76 0.40 • • 1.00-3.00 0.10-0.43
CNGN 120408E 12.90 12.70 4.76 0.80 • 1.00-3.00 0.10-0.50
CNGN 120408T 12.90 12.70 4.76 0.80 • • • • • 1.00-3.00 0.10-0.50
CNGN 120412E 12.90 12.70 4.76 1.20 • 1.00-5.00 0.10-0.50
CNGN 120412T 12.90 12.70 4.76 1.20 • • 1.00-4.00 0.10-0.50
CNGN 120416T 12.90 12.70 4.76 1.60 • 1.00-5.00 0.10-0.50
CNGN 120708E 12.90 12.70 7.94 0.80 • 1.00-4.00 0.10-0.50
CNGN 120708T 12.90 12.70 7.94 0.80 • • • • 1.00-4.00 0.10-0.50
CNGN 120712E 12.90 12.70 7.94 1.20 • 1.00-5.00 0.10-0.50
CNGN 120712T 12.90 12.70 7.94 1.20 • • • 1.00-4.00 0.10-0.50
CNGN 120716T 12.90 12.70 7.94 1.60 • • • 1.00-5.00 0.10-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: CCLNR/L (88)

75° 95 º
CNMG-Ceramic 80° 95 º 95 º
80° Rhombic Double-Sided
Inserts with a T-Land IC 75 º
for Machining Cast Iron
and Hardened Steel
RE L S

Dimensions Tough 1 Hard Recommended Machining Data

ap f
Designation L IC S RE IN23 IN22 (mm) (mm/rev)
CNMG 120404T 12.90 12.70 4.76 0.40 • 1.00-3.00 0.05-0.20
CNMG 120408T 12.90 12.70 4.76 0.80 • • 1.00-3.00 0.05-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)
• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)
• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)
• S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)
