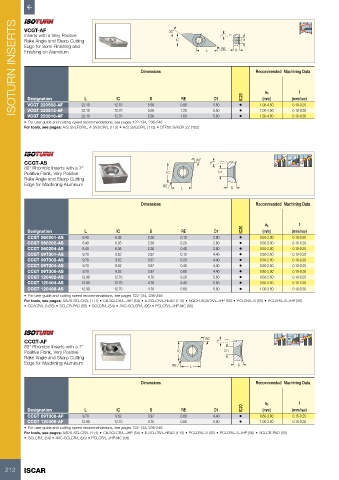

Page 214 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS VCGT-AF Dimensions 35˚ IC L 7° RE S D1 Recommended Machining Data

Inserts with a Very Positive
Rake Angle and Sharp Cutting
Edge for Semi-Finishing and
Finishing on Aluminum

f
ap
S
RE
Designation
D1
IC
(mm)
L
12.70
5.56
VCGT 220508-AF
22.10
0.10-0.25
•
5.50
22.10
5.56
VCGT 220512-AF
1.20
1.00-4.50
12.70
0.10-0.30
•
12.70
1.60
5.56
22.10
0.10-0.35
VCGT 220516-AF
1.50-4.50
5.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 0.80 5.50 • IC20 1.00-4.50 (mm/rev)
For tools, see pages: A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • DTF50 SVXCR-22 (452)

95 º 99°
CCGT-AS 80˚ 7˚ 95 º 95 º 91°
80° Rhombic Inserts with a 7°
Positive Flank, Very Positive IC D1
Rake Angle and Sharp Cutting
Edge for Machining Aluminum RE
L S
Dimensions Recommended Machining Data
ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
CCGT 060201-AS 6.40 6.35 2.38 0.10 2.80 • 0.50-2.00 0.10-0.20
CCGT 060202-AS 6.40 6.35 2.38 0.20 2.80 • 0.50-2.00 0.10-0.20
CCGT 060204-AS 6.40 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.25
CCGT 09T301-AS 9.70 9.52 3.97 0.10 4.40 • 0.50-2.50 0.10-0.25
CCGT 09T302-AS 9.70 9.52 3.97 0.20 4.40 • 0.50-2.50 0.10-0.25
CCGT 09T304-AS 9.70 9.52 3.97 0.40 4.40 • 0.50-2.50 0.10-0.25
CCGT 09T308-AS 9.70 9.52 3.97 0.80 4.40 • 0.80-3.00 0.10-0.30
CCGT 120402-AS 12.90 12.70 4.76 0.20 5.50 • 0.50-2.50 0.10-0.25
CCGT 120404-AS 12.90 12.70 4.76 0.40 5.50 • 0.50-2.50 0.10-0.25
CCGT 120408-AS 12.90 12.70 4.76 0.80 5.50 • 1.00-3.50 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

95 º 99°
CCGT-AF 80˚ 7˚ 95 º 95 º 91°
80° Rhombic Inserts with a 7°
Positive Flank, Very Positive IC D1
Rake Angle and Sharp Cutting
Edge for Machining Aluminum
RE L S
Dimensions Recommended Machining Data
ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
CCGT 09T308-AF 9.70 9.52 3.97 0.80 4.40 • 0.80-3.00 0.15-0.25
CCGT 120408-AF 12.90 12.70 4.76 0.80 5.50 • 1.00-3.50 0.15-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56) • SCLCR-PAD (55)
• SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

212 ISCAR
